Mahindra 1533

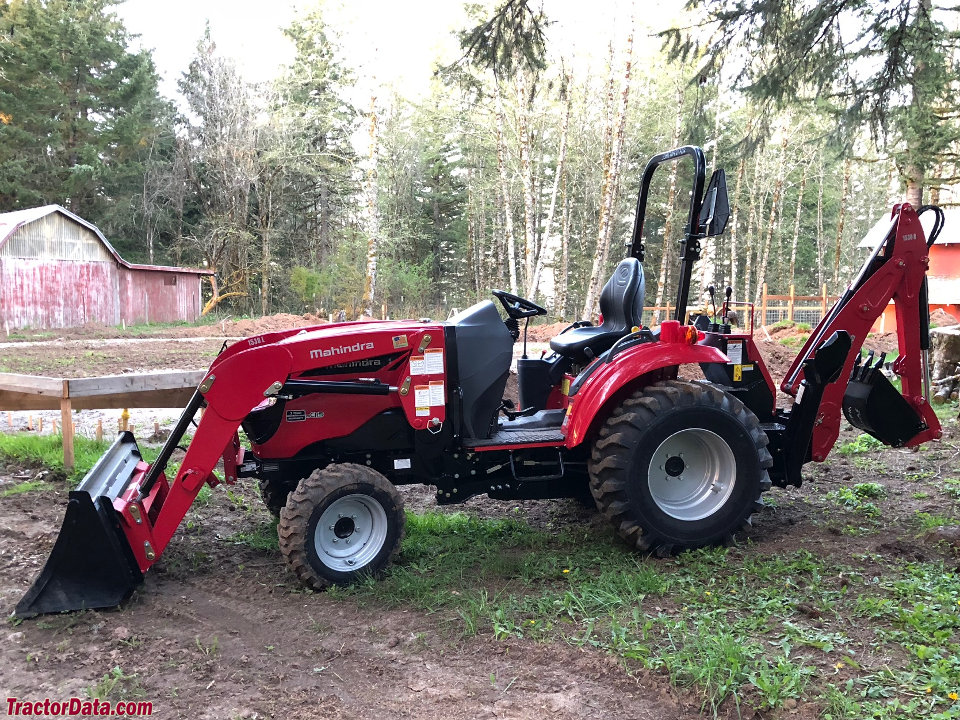

Mahindra 1533 tractor photo
2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built
Series:152615331538
Production
Distributor:Mahindra
Manufacturer:Mitsubishi
Type:Compact Utility tractor
Original price:$20,655 (2016 shuttle )
Original price:$22,005 (2016 hydrostatic )
Mahindra 1533 Power
Engine:34.5 hp
25.7 kW
Shuttle PTO (claimed):25.2 hp
18.8 kW
Hydro PTO (claimed):24.7 hp
18.4 kW
Mahindra 1533 Engine
Mahindra 2.7L 4-cyl diesel
Fuel tank:7.7 gal
29.1 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmissions:8-speed shuttle
 hydrostatic
Transmission details ...
Hydraulics
Type:open center
Rear valves:1*Optional
Pump flow:7.7 gpm
29.1 lpm
Steering flow:3.4 gpm
12.9 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:2646 lbs
1200 kg
Rear Arms:telescopic stabilizers
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2376
Mid RPM:2000
Engine RPM:2000@2525
Dimensions & Tires
Weight:3164 to 3175 pounds
Front tire:7x16
Rear tire:11.2x24
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:90
Charging volts:12
Battery volts:12
Battery AH:46
