Tractors > Claas > Xerion 4500

Claas Xerion 4500

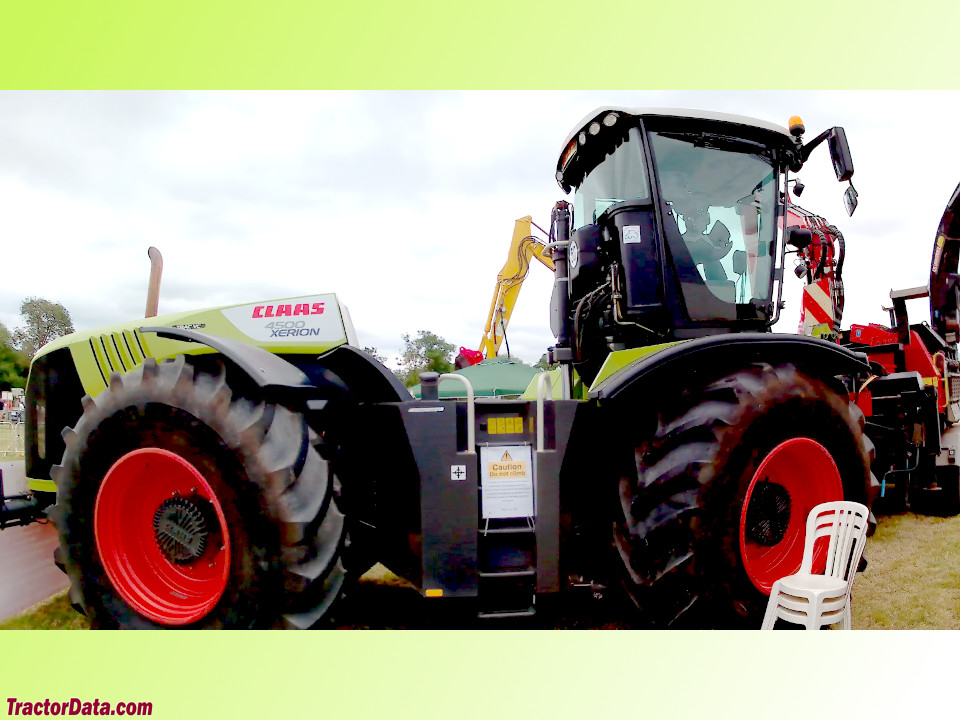

Claas Xerion 4500 tractor photo
2009 - 2018
Model years
Four-wheel Drive (4WD) tractor
Series next:Claas Xerion 5000
Series back:Claas Xerion 4000






Production:

Manufacturer:Claas


Variants:

Trac:center cabin
Trac VC:pivoting cabin


Claas Xerion 4500 Engine:

   Mercedes-Benz 12.8L 6-cyl diesel
full engine details ...


Capacity:

Fuel:245.7 gal [930.0 L]
Exhaust fluid (DEF):23.8 gal [90.1 L]
Hydraulic system:31.7 gal [120.0 L]


3-Point Hitch:

Rear Type:IVN
Rear lift:22480 lbs [10196 kg]
Front Hitch:IIIN
Front lift:18210 lbs [8260 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000*Available in 35mm, 45mm, or 57.7mm shaft sizes.


Dimensions & Tires:

Wheelbase:141.7 inches [359 cm]
Weight:36530 lbs [16570 kg]
full dimensions and tires ...


Xerion 4500 Serial Numbers:


how to read serial numbers...



Claas Xerion 4500 Power:

Engine (gross):479 hp [357.2 kW]
Engine (max):490 hp [365.4 kW]
PTO (claimed):433 hp [322.9 kW]
Drawbar (tested):375.91 hp [280.3 kW]
PTO (tested):439.48 hp [327.7 kW]
power test details ...


Mechanical:

Chassis:4x4 4WD
Differential lock:electo-hydraulic front and rear
Brakes:hydraulic wet disc


Hydraulics:

Capacity:31.7 gal [120.0 L]
Pressure:2900 psi [200.0 bar]
Rear valves:up to 7
Front valves:up to 3
SCV flow:27.7 gpm [104.8 lpm]
Total flow:51.5 gpm [194.9 lpm]


Electrical:

Ground:negative
