Landini Ghibli 100
| | 2000 - 2003 |
| Ghibli Series | | Utility tractor |
|
| Production |
| Manufacturer: | Landini (a part of Argo)
|
| Type: | Utility tractor
|
| Variants |
| Atlantis 100: | economy
|
| Ghibli 100: | deluxe
|
| Landini Ghibli 100 Power |
| Engine: | 93 hp
69.4 kW
|
| PTO (claimed): | 87 hp
64.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 12-speed shuttle
|
| | 24-speed shuttle with creeper
|
| | 24-speed shuttle with overdrive
|
 Transmission details ... |
| Hydraulics |
| Pressure: | 2610 psi
180.0 bar
|
| Valves: | 2
|
| Pump flow: | 14.2 gpm
53.7 lpm
|
| Total flow: | 20.6 gpm
78.0 lpm
|
| Steering flow: | 6.3 gpm
23.8 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 5732 lbs
2600 kg
|
| | 9590 lbs
4350 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/750 (1.375)
|
| | 540/1000 (1.375)
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
| Page information |
| Last update: | July 22, 2020
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

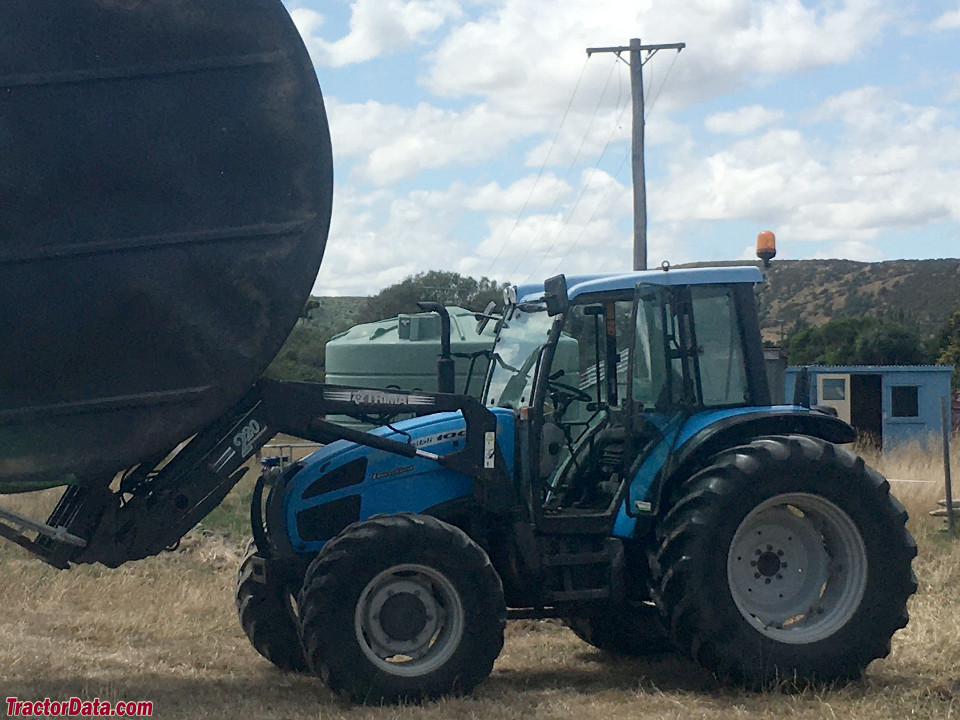

Landini Ghibli 100 photos...
