Tractors > CaseIH > Farmall 130A

CaseIH Farmall 130A - transmission

CaseIH Farmall 130A tractor photo
2015 -    Farmall 100A Series
Utility tractor
Previous model:CaseIH Farmall 125A
Series next:CaseIH Farmall 140A
Series back:CaseIH Farmall 120A
more CaseIH Farmall 130A specifications...






Transmission:

Type:power shuttle
Gears:8 forward and reverse
Speeds:With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

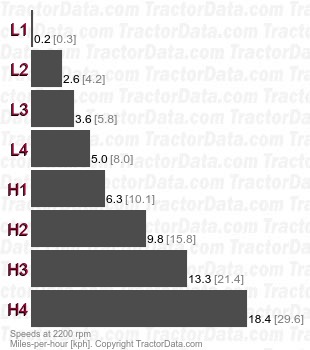

Farmall 130A  power shuttle speeds


Transmission:

Type:mechanical shuttle
Gears:8 forward and reverse


Transmission:

Transmission:Hi-Lo
Type:power shuttle
Gears:16 forward and 8 reverse
Speeds:

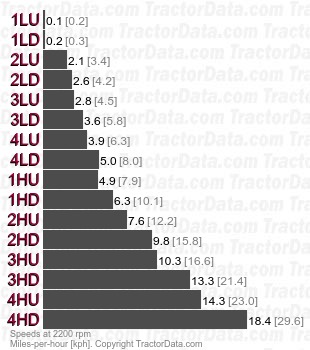

Farmall 130A Hi-Lo power shuttle speeds
