Tractors > CaseIH > Steiger 470 Quadtrac

CaseIH Steiger 470 Quadtrac

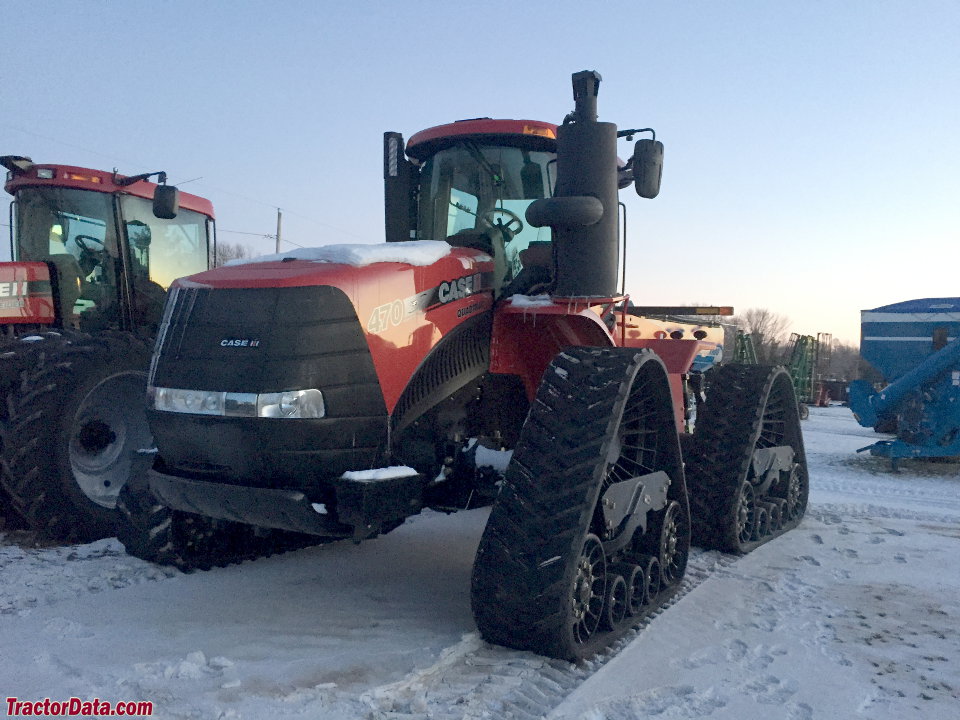

CaseIH Steiger 470 Quadtrac tractor photo
2014 -    Steiger Quadtrac Series
Articulated Crawler tractor
Previous model:CaseIH Steiger 450 Quadtrac
Series next:CaseIH Steiger 500 Quadtrac






Production:

Manufacturer:CaseIH
Factory:Fargo, North Dakota, USA
Original price (USD)
   $468,109 (2015 )


Variants:

470:wheeled tractor
470RT:row-crop crawler
470QT:crawler


CaseIH Steiger 470 Quadtrac Engine:

   FPT 12.9L 6-cyl diesel
full engine details ...


Capacity:

Fuel:310 gal [1173.4 L]
Exhaust fluid (DEF):85 gal [321.7 L]


Drawbar:

Drawbar:Cat. 4


3-Point Hitch:

Rear Type:IVN
Rear lift (at 24"/610mm):20000 lbs [9072 kg]
Rear Arms:quick coupler


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000*1.75 inch shaft


Dimensions & Tires:

Wheelbase:154 inches [391 cm]
Weight:46500 lbs [21092 kg]
Front tire:tracks
Rear tire:tracks
full dimensions and tires ...


Steiger 470 Quadtrac Serial Numbers:


- Serial numbers unknown -



CaseIH Steiger 470 Quadtrac Power:

Engine:470 hp [350.5 kW]
PTO (claimed):405 hp [302.0 kW]


Mechanical:

Chassis:articulated crawler
Final drives:planetary
Steering:hydraulic articulated
Brakes:hydraulic wet disc
 engine brake*Optional.
Trailer brakes:hydraulic*Optional.
Cab:Surveyor Cab standard with air-conditioning.


Hydraulics:

Type:pressure flow compensated
Valves:4 to 8
Pump flow:42 gpm [159.0 lpm]
 57 gpm [215.7 lpm] *High Flow option
 113 gpm [427.7 lpm] *TwinFlow option
SCV flow:35 gpm [132.5 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:200


Battery:

Number:2
Cold-cranking amps:1000
Volts:12
