Massey Ferguson 7720
|
|
| Production | |
| Manufacturer | Massey Ferguson (a part of AGCO) |
| Row-Crop tractor | |
| Built in Beauvais, France | |
| Original price | $158,381 (2015 Dyna-6 Classic ) |
| $203,811 (2015 Dyna-VT Premium ) | |
| Massey Ferguson 7720 Engine | |
| AGCO POWER 6.6L 6-cyl diesel | |
 Engine details ... |
| Massey Ferguson 7720 Transmissions | |
| 24-speed six-speed power shift | |
| continuously-variable transmission (CVT) | |
 Transmission details ... |
| Massey Ferguson 7720 Power | |
| Engine (gross) | 185 hp 138.0 kW |
| PTO (claimed) | 155 hp 115.6 kW |
| Drawbar (tested) | 138.9 hp 103.6 kW |
| PTO (tested) | 198.7 hp 148.2 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | full-locking electro-hydraulic |
| Power steering | |
| Wet disc brakes | |
| Cab standard with air-conditioning. AGCOMMAND ready | |
| Photos | |
| No photos of the Massey Ferguson 7720 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Capacity | |
| Fuel | 114 gal 431.5 L |
| Exhaust fluid (DEF) | 14 gal 53.0 L |
| Hydraulic system | 26.4 gal 99.9 L |
| Hydraulics | |
| Type | closed center load sensing |
| Capacity | 26.4 gal 99.9 L |
| Pressure | 2900 psi 200.0 bar |
| Valves | 3 to 5 |
| Pump flow | 29 gpm 109.8 lpm |
| 39 gpm*Optional with Dyna-6 transmission. 147.6 lpm | |
| 50 gpm*Optional with Dyna-VT transmission 189.2 lpm | |
| SCV flow | 24.3 gpm 92.0 lpm |
| Tractor hitch | |
| Rear Type | III |
| Control | electronic lower-link draft sensing |
| Rear lift (at ends) | 13500 lbs*With Dyna-6 transmission 6123 kg |
| 15500 lbs*With Dyna-VT transmission 7030 kg | |
| Front Hitch | IIIN |
| Front lift (at ends) | 7954 lbs 3607 kg |
| Drawbar | Cat. 2 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| 540/540E/1000 | |
| 540E/1000E/1000 | |
| 540/540E/1000/1000E | |
| Dimensions & Tires | |
| Weight | 15430 lbs 6999 kg |
| Front tire | 420/85R28 |
| Rear tire | 480/80R42 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 175 |
| 240 *Dual 120A alternators on Deluxe and Premium models. | |
| Batteries | 2 |
| Battery CCA | 600 |
| Battery volts | 12 |
| References | |
 | |

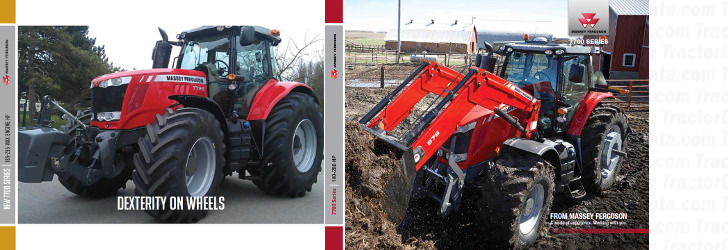

| 7700 Series published in 2015, by Massey Ferguson | |
| 7700 Series published in 2015, by Massey Ferguson |
