Kubota L1-24

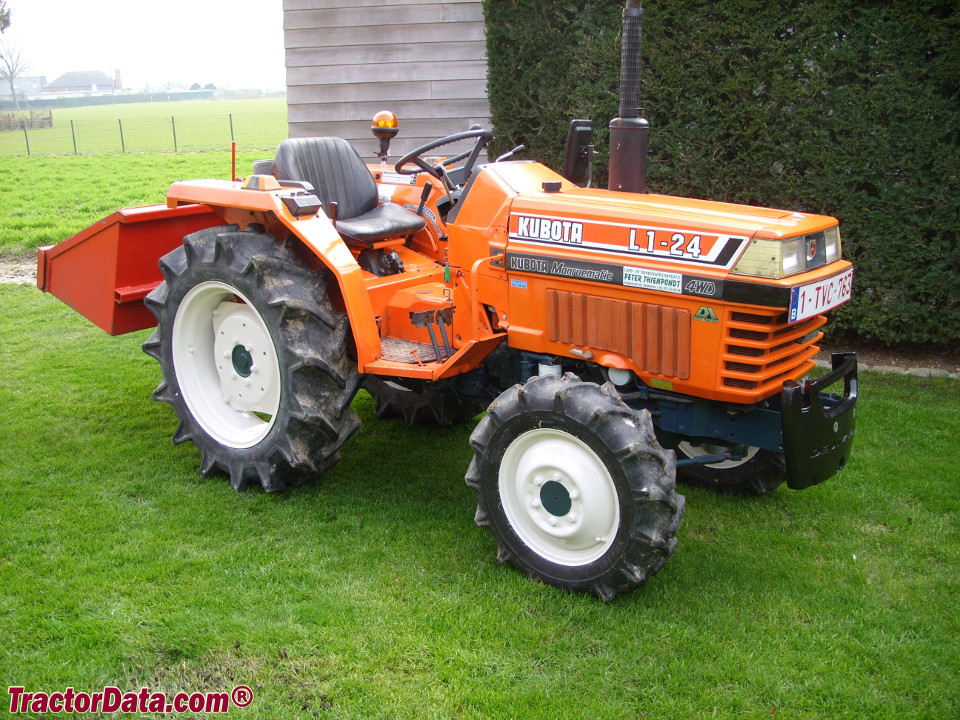

Kubota L1-24 tractor photo
1983 - 1985
L1 Series
Compact Utility tractor
Series map:
L1-22
L1-24
L1-26
16.2kw
17.7kw
19.1kw
Production
ManufacturerKubota
Compact Utility tractor
Variants
L1-24DT4WD
Kubota L1-24 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank7.7 gal
29.1 L
Engine details ...
Kubota L1-24 Power
Engine23.7 hp
17.7 kW
Mechanical
Two- or four-wheel drive
Wet disc brakes
Open operator station.
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear RPM540/770/940/1250 (1.375)
Dimensions & Tires
Wheelbase61 inches
154 cm
Weight2183 to 2359 pounds
Front tire5.00-15
2WD Rear tire11.2-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
L1-24 references literature
Instruction Manual L1 (31351-1921-6)
