Tractors > John Deere > 5400

John Deere 5400 - transmission

John Deere 5400 tractor photo
1996 - 2000
Utility tractor
Next model:John Deere 5410
Series next:John Deere 5500
Series back:John Deere 5300
more John Deere 5400 specifications...






Transmission:

Type:partially synchronized
Gears:12 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range or direction.
Speeds:With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

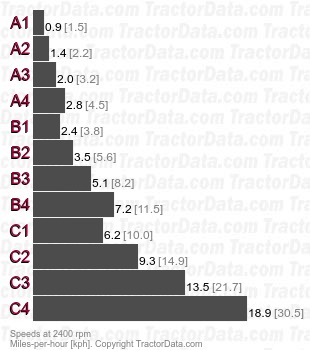

5400  partially synchronized speeds


Transmission:

Type:partially synchronized
Gears:24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and Hi-Lo shift. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range, direction, or Hi-Lo.
Speeds:With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

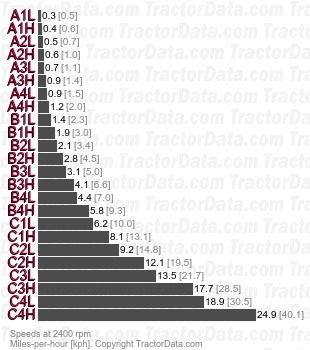

5400  partially synchronized speeds
