John Deere 5300 Transmission


John Deere 5300 tractor photo
1996 - 2000
Utility tractor
Carraro built
Series:53005400
5310
Transmissions overview
12-speed partially synchronized
24-speed partially synchronized
Transmission
Type:partially synchronized
Gears:12 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range or direction.
Speeds
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

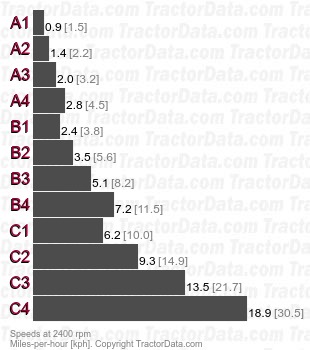

5300  partially synchronized speeds
Transmission
Type:partially synchronized
Gears:24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and Hi-Lo shift. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range, direction, or Hi-Lo.
Speeds
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

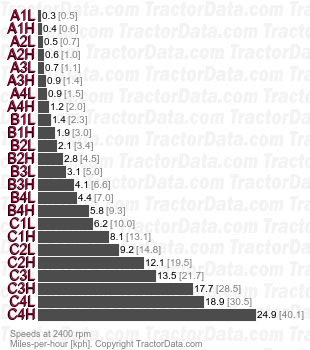

5300  partially synchronized speeds
