Tractors > Kubota > MX5200

Kubota MX5200

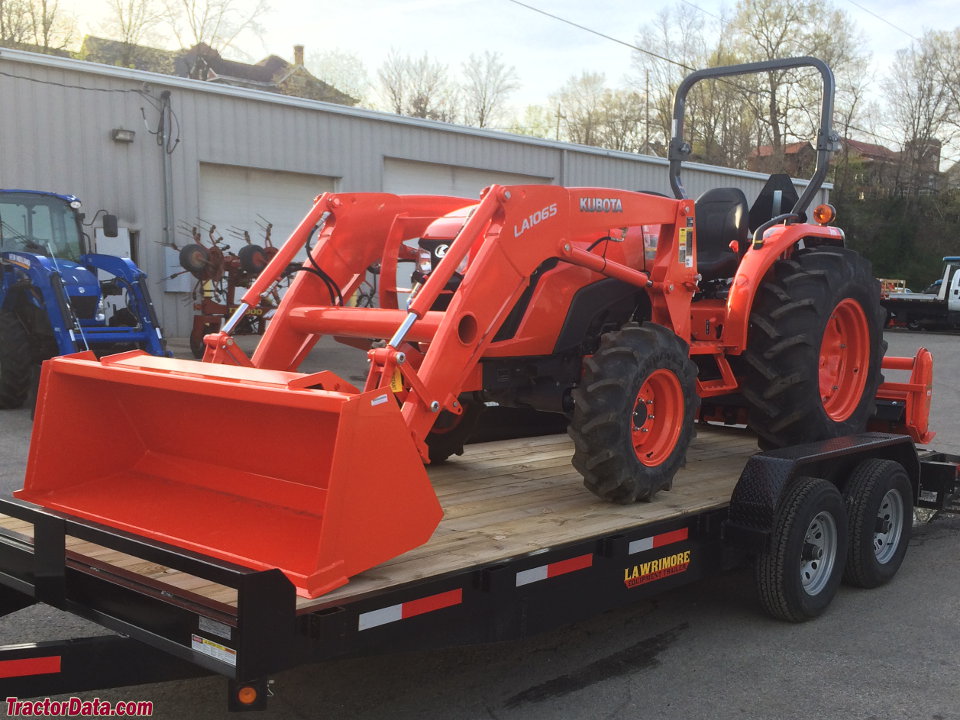

Kubota MX5200 tractor photo
2014 -
Utility tractor
Previous model:Kubota MX5100
Series next:Kubota MX5800
Series back:Kubota MX4800






Production:

Manufacturer:Kubota
Original price (USD)
   $21,621 (2014 shuttle 2WD )
   $28,675 (2014 hydro 4WD )


Kubota MX5200 Engine:

   Kubota 2.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:13.5 gal [51.1 L]


3-Point Hitch:

Rear Type:II/I
Control:position control
 draft control*Optional
Rear lift (at ends):telescoping lbs [0 kg] lower links
Rear lift (at 24"/610mm):2310 lbs [1047 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:wet disc
Rear RPM:540


Dimensions & Tires:

Wheelbase:74.6 inches [189 cm]
Weight:3474 to 3734 pounds
Front tire:7.5L-15
Rear tire:14.9-26 (2WD)
full dimensions and tires ...


Kubota MX5200 attachments:

 front-end loader
 backhoe
all MX5200 attachments ...


MX5200 Serial Numbers:


- Serial numbers unknown -



Kubota MX5200 Power:

Engine (gross):54.7 hp [40.8 kW]
Engine (net):52.1 hp [38.9 kW]
Shuttle PTO (claimed):45.7 hp [34.1 kW]
Hydro PTO (claimed):44.2 hp [33.0 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:mechanical rear
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Valves:up to 3
Pump flow:9.5 gpm [36.0 lpm]
Steering flow:4.9 gpm [18.5 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:45


Battery:

Number:1
Volts:12
