LS P7030

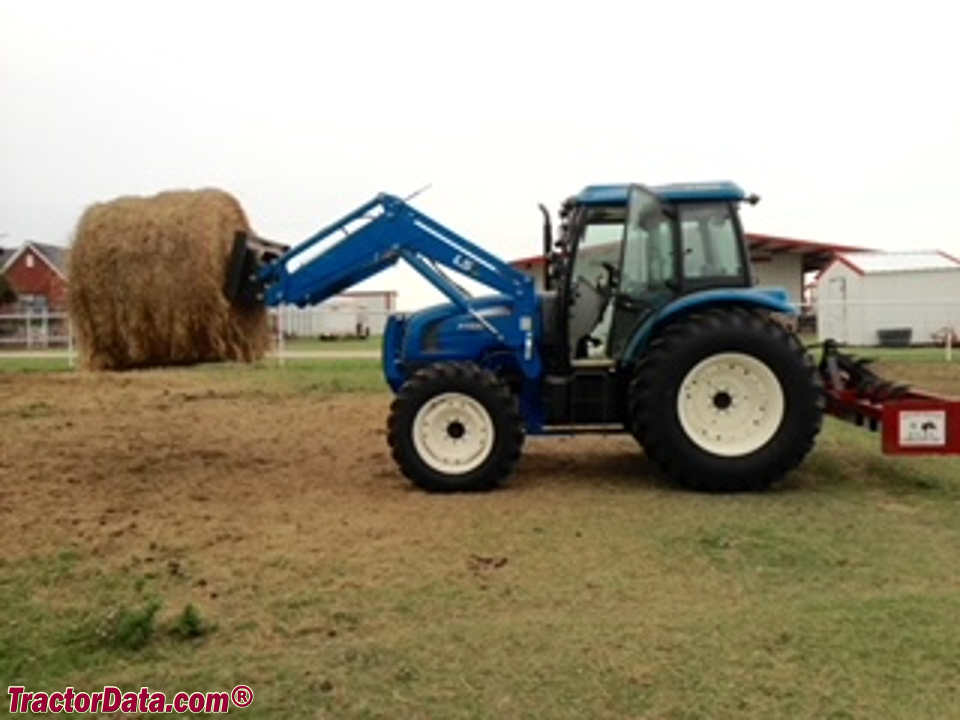

LS P7030 tractor photo
2009 - ????
P Series
Utility tractor
Series map:
P7010
P7030
P7040
72.0hp
88.0hp
97.0hp
Production
ManufacturerLS
Utility tractor
Variants
P7030Csynch shuttle
P7030CPSpower shuttle
LS P7030 Engine
Iveco FPT 3.2L 4-cyl diesel
Fuel tank26.4 gal
99.9 L
Engine details ...
LS P7030 Transmissions
20-speed synchro shuttle
40-speed power shuttle
Transmission details ...
LS P7030 Power
Engine (gross)88 hp
65.6 kW
PTO (claimed)77 hp
57.4 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Rear valves3
Pump flow12 gpm
45.4 lpm
Total flow19 gpm
71.9 lpm
Steering flow7 gpm
26.5 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift6173 lbs
2800 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/750/1000
Dimensions & Tires
Wheelbase86.6 inches
219 cm
Weight6724 lbs
3050 kg
Front tire12.4-24
Rear tire18.3-30
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps120
Battery volts12
