Kubota L1802
| | 1978 - 1985 |
| L02 Series | | Compact Utility tractor |
|
Series map:
L1802
L2002
13.3kw
14.7kw
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Built in Japan |
| Variants |
| L1802 | 2WD
|
| L1802DT | 4WD
|
| Kubota L1802 Power |
| Engine | 17.8 hp
13.3 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Open operator station. |
| Hydraulics |
| Pump flow | 3.8 gpm
14.4 lpm
|
| Tractor hitch |
| Rear Type | JIS1
|
| Power Take-off (PTO) |
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 556@2500
|
| | 774@2500
|
| | 938@2500
|
| | 1250@2500
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| Sunshine Tractor published by Kubota |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on March 18, 2024 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

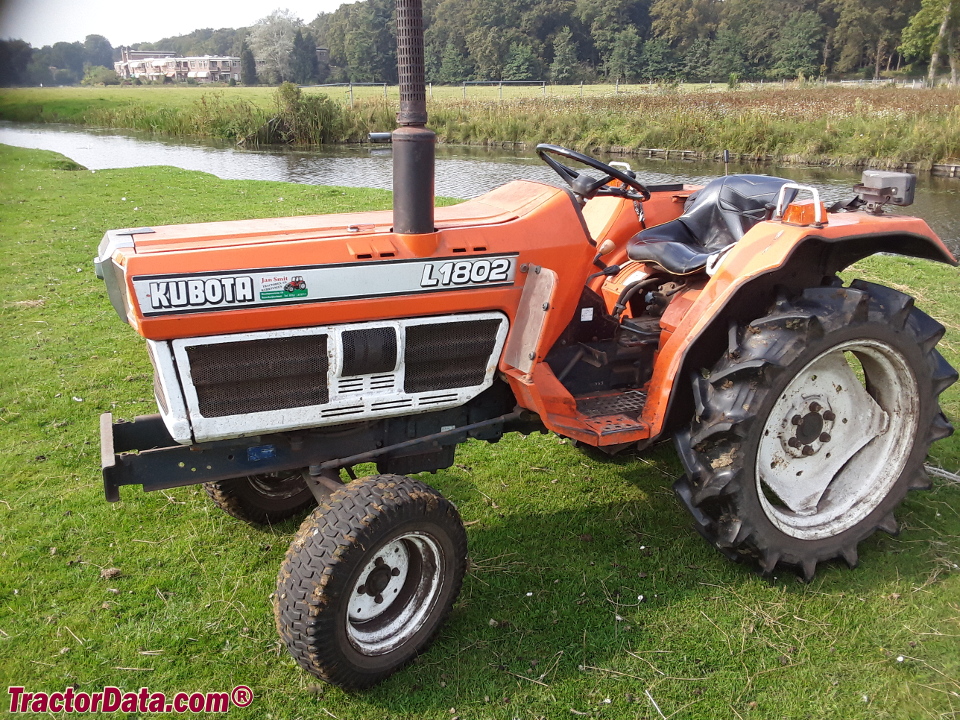

Kubota L1802 photos...
Full dimensions and tires ...
