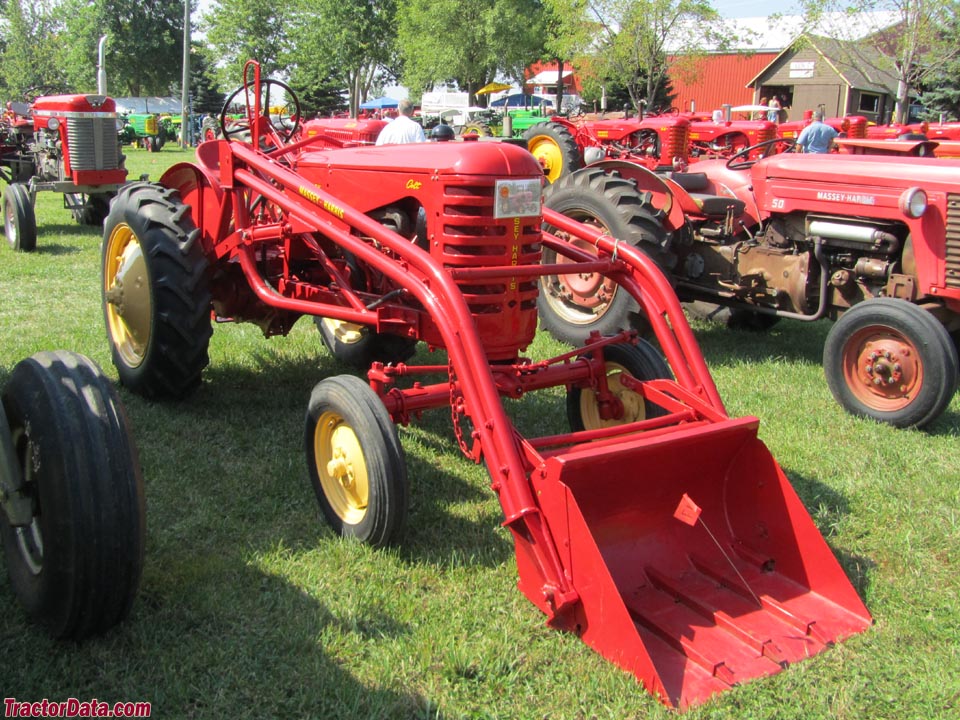

Massey-Harris 21 Colt
| | 1952 - 1953 |
| Row-Crop tractor |
|
| Production |
| Manufacturer: | Massey-Harris
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| The Massey-Harris 21 Colt was essentially the model 20, updated with new sheet metal. |
| Massey-Harris 21 Colt Power |
| Drawbar (claimed): | 21.6 hp
16.1 kW
|
| Belt (claimed): | 28.34 hp
21.1 kW
|
| Plows: | 2 (14-inch)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | bevel gear
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed gear
|
 Transmission details ... |
| Tractor hitch |
| Rear Type: | I (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540
|
| Belt Pulley |
| Diameter: | 9.5 inches
24 cm
|
| Width: | 6.25 inches
15 cm
|
| RPM: | 1224
|
| Speed: | 3044 ft/min
927.81 meters/min
|
