CaseIH Magnum 220 Engine


CaseIH Magnum 220 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 200
Magnum 220
Magnum 240
200.0hp
220.0hp
240.0hp
Engine Detail
FPT
wastegate turbocharged air-to-air intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement410.6 ci
6.7 L
Bore/Stroke4.095x5.20 inches
104 x 132 mm
EmissionsTier 4
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)220 hp
164.1 kW
Maximum Power (gross)260 hp
193.9 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemviscous fan
Rated RPM2200
Starterelectric
Starter volts12
CaseIH Magnum 220 Engine

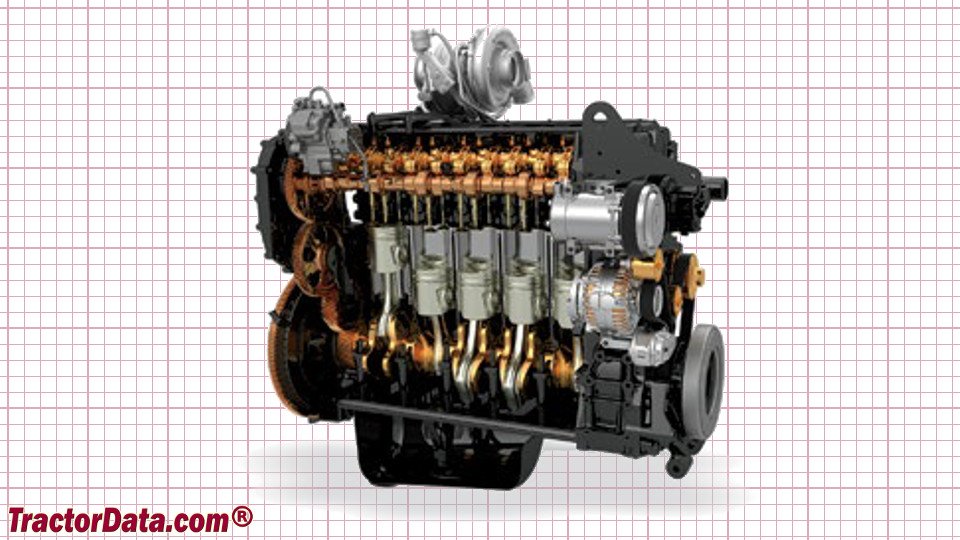

CaseIH Magnum 220 engine image
