J.I. Case 310E - tests

J.I. Case 310E tractor photo
1961 - 1964
Agricultural Crawler tractor
more J.I. Case 310E specifications...






Nebraska Tractor Test 805:

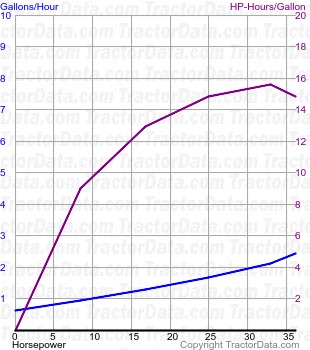

310E fuel use from test 805
Test Date:July 25 - August 16, 1961
Type:Diesel 3-speed crawler
PTO power (rated engine speed):36.89 hp [27.5 kW]
PTO fuel use (engine speed):2.5 gal/hour [9.5 l/hour]
PTO power (rated PTO speed):34.96 hp [26.1 kW]
PTO fuel use (PTO speed):2.3 gal/hour [8.7 l/hour]
Drawbar power (max):29.56 hp [22.0 kW]
Drawbar fuel use (max):2.4 gal/hour [9.1 l/hour]
Drawbar pull (max):7061 lbs [3202 kg]
Max pull gear:1
Test report:PDF file
