Tractors > Challenger > MT565D

Challenger MT565D - tests

Challenger MT565D tractor photo
2012 - 2014   MT500D Series
Row-Crop tractor
Next model:Challenger MT565E
Series next:Challenger MT575D
Series back:Challenger MT555D
more Challenger MT565D specifications...






OCED Tractor Test 2704:

Nebraska summary:843

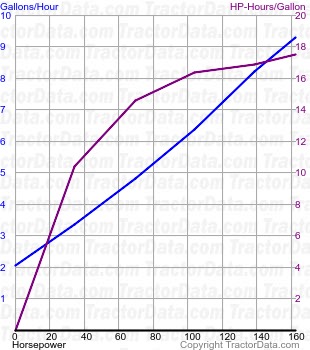

MT565D fuel use from test 843
Test Date:January 2012 - March 2012,
Type:Diesel Techstar CVT 4WD
PTO power (max):183.2 hp [136.6 kW]
PTO fuel use (max):9.9 gal/hour [37.5 l/hour]
PTO power (rated engine speed):162.3 hp [121.0 kW]
PTO fuel use (engine speed):9.3 gal/hour [35.2 l/hour]
PTO power (rated PTO speed):169.1 hp [126.1 kW]
PTO fuel use (PTO speed):9.6 gal/hour [36.3 l/hour]
Drawbar power (max):124.4 hp [92.8 kW]
Drawbar fuel use (max):8.5 gal/hour [32.2 l/hour]
Drawbar pull (max):16995 lbs [7708 kg]
Max pull gear:2.63 KPH
Test report:PDF file


OCED Tractor Test 2756:

Nebraska summary:907

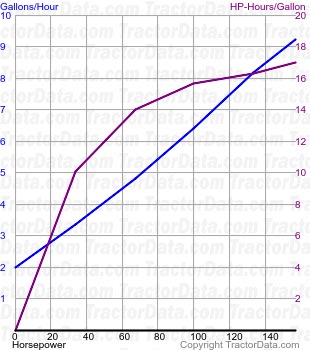

MT565D fuel use from test 907
Test Date:September 2012 - October 2012,
Type:Diesel AutoPower VI 4WD
PTO power (max):178.6 hp [133.2 kW]
PTO fuel use (max):9.8 gal/hour [37.1 l/hour]
PTO power (rated engine speed):156.8 hp [116.9 kW]
PTO fuel use (engine speed):9.2 gal/hour [34.8 l/hour]
PTO power (rated PTO speed):171.5 hp [127.9 kW]
PTO fuel use (PTO speed):9.6 gal/hour [36.3 l/hour]
Drawbar power (max):137.2 hp [102.3 kW]
Drawbar fuel use (max):8.6 gal/hour [32.6 l/hour]
Drawbar pull (max):15310 lbs [6944 kg]
Max pull gear:1F
Test report:PDF file
