John Deere 3039R Engine


John Deere 3039R tractor photo
2014 -
3R Series
Compact Utility tractor
3520
Series:3033R3039R3046R
Engine Detail
Yanmar 3TNV86
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:95.7 ci
1.6 L
Bore/Stroke:3.39x3.54 inches
86 x 90 mm
Emissions:Tier IV
Emission control:diesel particulate filter (DPF)
Power:39 hp
29.1 kW
Rated RPM:2600
Starter:electric
Starter volts:12
Coolant capacity:5.6 qts
5.3 L (ROPS)
 7.4 qts
7.0 L (Cab)
Engine Oil

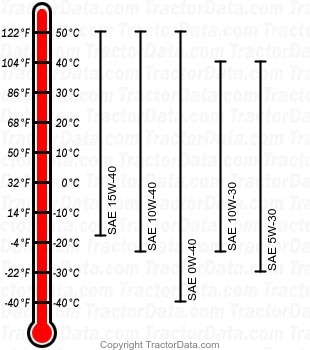

3039R diesel engine oil chart
Oil capacity:4.5 qts
4.3 L
Oil change:200 h
