Massey Ferguson 7622

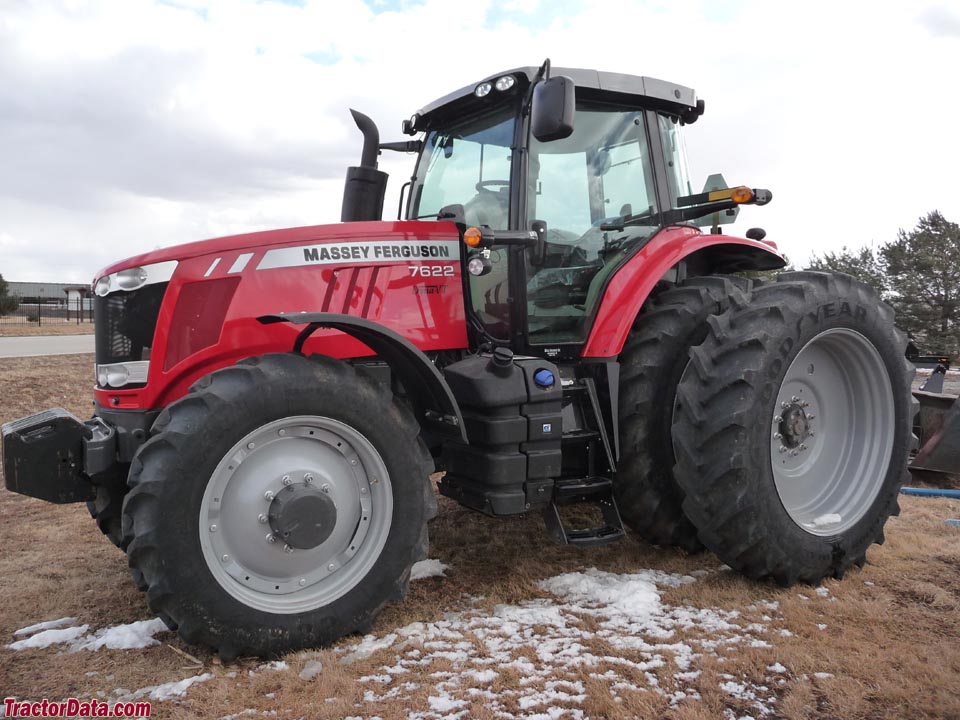

Massey Ferguson 7622 tractor photo
2013 - 2014
7600 Series
Row-Crop tractor
Series map:
7620
7622
7624
180.0hp
200.0hp
220.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Row-Crop tractor
Built in Beauvais, France
Massey Ferguson 7622 Power
Engine (net)200 hp
149.1 kW
PTO (claimed)165 hp
123.0 kW
Drawbar (tested)168.77 hp
125.9 kW
PTO (tested)202.4 hp
150.9 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic standard
Power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic (optional)
 pneumatic (optional)
Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional)
Capacity
Fuel114 gal
431.5 L
Exhaust fluid (DEF)14 gal
53.0 L
Hydraulic system26.4 gal
99.9 L
Hydraulics
Typeclosed-center load sensing (CCLS)
Capacity26.4 gal
99.9 L
Pressure2900 psi
200.0 bar
Valves3 (mechanical)
 4 (2 mech, 2 elec)
 4 (electric)
SCV flow24.3 gpm
92.0 lpm
Total flow29 gpm
109.8 lpm
 39 gpmOptOptional
147.6 lpm
Tractor hitch
Controlelectronic lower link draft sensing
Rear lift (at ends)14000 lbs (Dyna-6)
6350 kg
 13715 lbs (Dyna-VT)
6221 kg
Front Hitchoptional
DrawbarCat. II with drop pin
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/1000 (1.375)
 540/540E/1000 (1.375)
 540/1000/1000E (1.375)
 540/540E/1000/1000E (1.375)
Engine RPM540@1890 (Dyna-6)
 540@2065 (Dyna-VT)
 540E@1524 (Dyna-6)
 540E@1590 (Dyna-VT)
 1000@2000 (Dyna-6)
 1000@2034 (Dyna-VT)
 1000E@1595
Dimensions & Tires
Wheelbase117.8 inches
299 cm
Weight15990 to 18495 pounds
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps120
 175 (option)
 240 (dual 120 option)
Batteries2
Battery volts12
References
7622 references literature
7600 Series published in 2013, by Massey Ferguson
