Tractors > Jeep > CJ-3B

Jeep CJ-3B

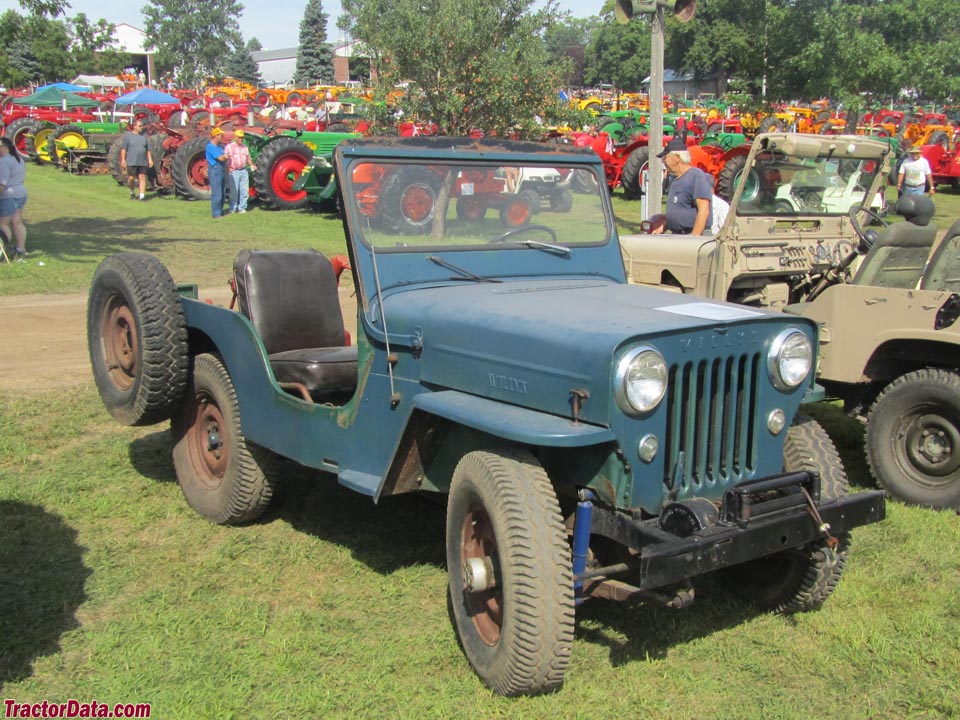

Jeep CJ-3B tractor photo
1954 - 1968
Truck-type tractor
Previous model:Jeep CJ-3A






Production:

Manufacturer:Jeep
Factory:Toledo, Ohio, USA


Jeep CJ-3B Engine:

   Willys 2.2L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:10.5 gal [39.7 L]


3-Point Hitch:

Rear Type:I


Power Take-off (PTO):

Rear PTO:optional
Rear RPM:540 (1.375)


Dimensions & Tires:

Wheelbase:80 inches [203 cm]
Weight:2037 lbs [923 kg]
Front tire:6x16
Rear tire:6x16
full dimensions and tires ...


CJ-3B Serial Numbers:


- Serial numbers unknown -



Links:

:


Jeep CJ-3B Power:

Engine:75 hp [55.9 kW]
Plows:2 (12-inch)
Drawbar (tested):27.08 hp [20.2 kW]
Belt (tested):35.23 hp [26.3 kW]
power test details ...


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:manual
Brakes:hydraulic drum
Cab:Open operator station.


Belt Pulley:

Diameter:8 inches [20 cm]
Width:8 inches [20 cm]
RPM:1550
Speed:3246 ft/min [989.38 meters/min]


Electrical:

Ground:negative


Battery:

Number:1
Volts:6
