New Holland T6030 Plus

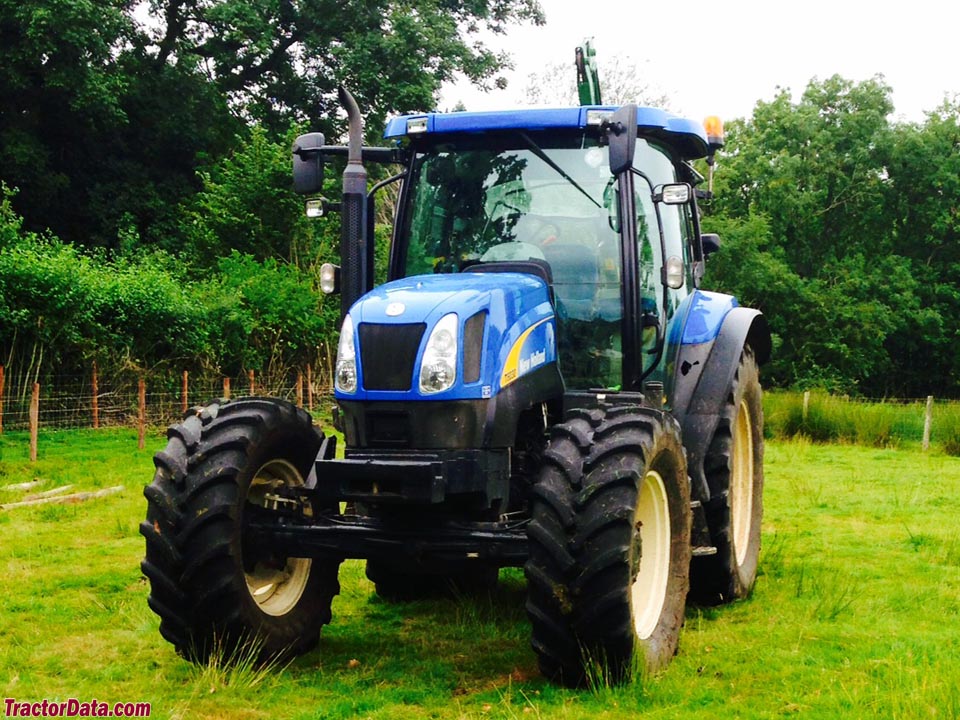

New Holland T6030 Plus tractor photo
2007 - 2012
T6000 Series
Utility tractor
Series:T6020 PlusT6030 PlusT6050 Plus
Production
Manufacturer:New Holland
Type:Utility tractor
Variants
T6030 Delta:economy
T6030 Plus:mid-level
T6030 Elite:premium
New Holland T6030 Plus Power
Engine (gross):115 hp
85.8 kW
PTO (claimed):95 hp
70.8 kW
Drawbar (tested):80.2 hp
59.8 kW
PTO (tested):107.8 hp
80.4 kW
power test details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
 SuperSteer optional
Brakes:hydraulic wet disc
Cab:Horizon cab standard.
Transmission:16-speed partial power shift
Transmission details ...
Capacity
Fuel:66 gal
249.8 L
SuperSteer Fuel:60.8 gal
230.1 L
Hydraulic system:16.3 gal
61.7 L
Hydraulics
Type:closed center load-sensing
Capacity:16.3 gal
61.7 L
Valves:2 to 4
Pump flow:26.5 gpm
100.3 lpm
Total flow:37 gpm
140.0 lpm
Steering flow:10.5 gpm
39.7 lpm
Tractor hitch
Rear Type:II (mech)
 II/IIIN (elec)
Control:mechanical lower link draft sensing, electronic optional
Rear lift:9285 lbs
4211 kg
 9620 lbs
4363 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:104.4 inches
265 cm
4WD Wheelbase:104.7 inches
265 cm
Weight:10890 to 11336 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Charging volts:12
Battery CCA:960
Battery volts:12
