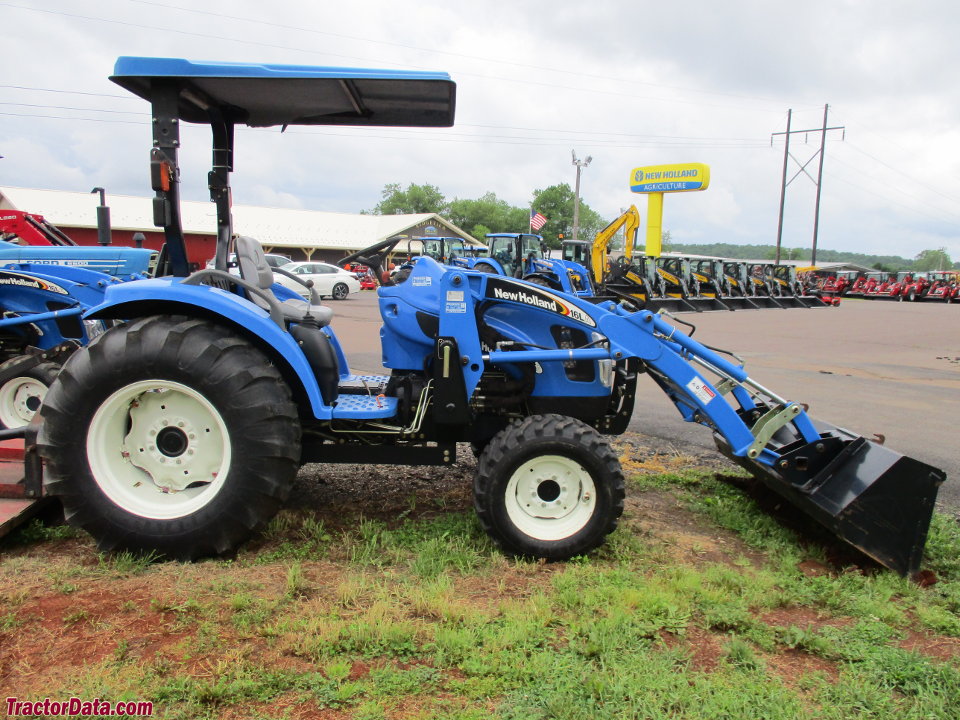

New Holland TC35A
| | 2003 - 2005 |
| Boomer TC-A Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | New Holland
|
| Compact Utility tractor |
| Original price | $11,814 (2003 TC35A )
|
| $13,323 (2003 TC35DA )
|
| The deluxe model TC35DA came with a hydrostatic transmission and 4WD as standard equipment. SuperSteer was optional on the TC35DA. The TC35DA also featured a telescoping steering column, weight-adjustable suspension seat, and flexible three-point link ends. |
| Variants |
| TC35A | base model
|
| TC35DA | deluxe model
|
| New Holland TC35A Power |
| Engine (gross) | 35 hp
26.1 kW
|
| Engine (net) | 33.5 hp
25.0 kW
|
| Gear PTO (claimed) | 29.6 hp
22.1 kW
|
| Hydro PTO (claimed) | 29.1 hp
21.7 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Wet disc brakes |
| Two-post ROPS. Folding ROPS standard on TC35DA. |
| Capacity |
| Fuel | 13 gal
49.2 L
|
| Steering | 1.5 qts
1.4 L
|
| Hydraulics |
| Type | open center
|
| Pressure | 2275 psi
156.9 bar
|
| Rear valves | 3 OptOptional
|
| Mid valves | 2 OptOptional
|
| Pump flow | 9.8 gpm
37.1 lpm
|
| Steering flow | 5.13 gpm
19.4 lpm
|
| Steering cap. | 1.5 qts
1.4 L
|
| Tractor hitch |
| Rear Type | I
|
| Control | position with optional top-link draft control
|
| Rear lift (at 24"/610mm) | 2025 lbs
918 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear RPM | 540 (1.375)
|
| Engine RPM | 540@2400
|
| Mid PTO | independent *Mid PTO available on the TC35DA
|
| Mid RPM | 2000 (1.0)
|
| Engine RPM | 2420@2000
|
| TC35A Serial Numbers |
| Location: | Serial number plate on the left side of the transmission housing.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery CCA | 600
|
| Battery volts | 12
|
| References |
 |
| BOOMER Tractor Implements, Attachments and Accessories published in 2005, by New Holland |
| BOOMER 18 To 55 HP Tractors published in 2005, by New Holland |
| Operator's Manual TC35DA - TC40DA - TC45DA (87300515) published in 2003 |
