Tractors > CaseIH > Farmall 125A

CaseIH Farmall 125A - transmission

CaseIH Farmall 125A tractor photo
2012 - 2014   Farmall 100A Series
Utility tractor
Next model:CaseIH Farmall 130A
Series next:CaseIH Farmall 140A
Series back:CaseIH Farmall 120A
more CaseIH Farmall 125A specifications...






Transmission:

Type:power shuttle
Gears:8 forward and reverse
Speeds:With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

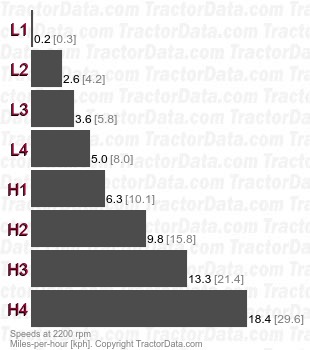

Farmall 125A  power shuttle speeds


Transmission:

Type:synchronized shuttle
Gears:8 forward and reverse


Transmission:

Transmission:Hi-Lo
Type:power shuttle
Gears:16 forward and 8 reverse
Adds under-drive to power shuttle transmission.
Speeds:

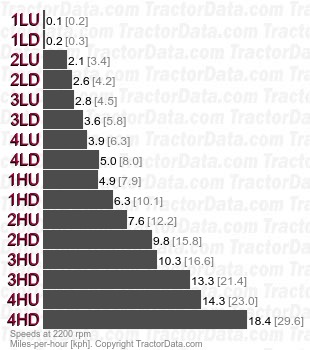

Farmall 125A Hi-Lo power shuttle speeds
