Tractors > CaseIH > Farmall 110A

CaseIH Farmall 110A - transmission

CaseIH Farmall 110A tractor photo
2012 - 2017   Farmall 100A Series
Model years
Utility tractor
Series next:CaseIH Farmall 120A
more CaseIH Farmall 110A specifications...






Transmission:

Type:power shuttle
Gears:8 forward and reverse
Speeds:With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

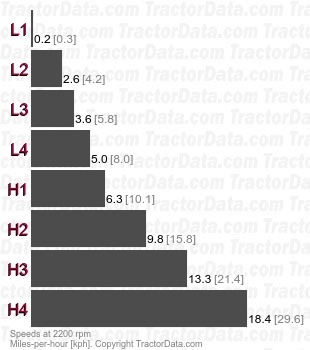

Farmall 110A  power shuttle speeds


Transmission:

Type:synchronized shuttle
Gears:8 forward and reverse


Transmission:

Transmission:Hi-Lo
Type:power shuttle
Gears:16 forward and 8 reverse
Adds under-drive to power shuttle transmission.
Speeds:

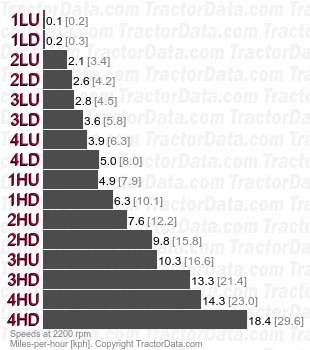

Farmall 110A Hi-Lo power shuttle speeds
