Tractors > John Deere > 6325

John Deere 6325 - transmission

John Deere 6325 tractor photo
6025 Series
Utility tractor
Series next:John Deere 6425
Series back:John Deere 6225
more John Deere 6325 specifications...






Transmission:

Transmission:John Deere SyncroPlus
Type:synchronized
Gears:12 forward and 4 reverse
Clutch:wet 225mm disc PermaClutch II
Oil capacity:58.1 qts [55.0 L]
Three gears (1-3) plus reverse (R) in four ranges (A-D).
Speeds:

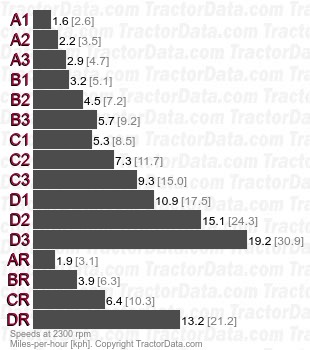

6325 SyncroPlus synchronized speeds


Transmission:

Transmission:John Deere PowrReverser
Type:power shuttle
Gears:16 forward and reverse
Clutch:wet 225mm disc PermaClutch II
Oil capacity:58.1 qts [55.0 L]
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. 30 KPH and 40 KPH maximum speed options available.
Speeds:

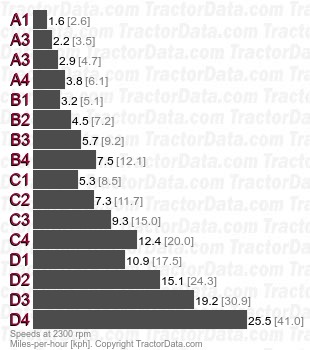

6325 PowrReverser power shuttle speeds
