John Deere 6425 Transmission
|
|
| Transmissions overview | |
| 12-speed synchronized | |
| 16-speed power shuttle |
| Transmission | |
| Transmission: | John Deere SyncroPlus |
| Type: | synchronized |
| Gears: | 12 forward and 4 reverse |
| Clutch: | wet 225mm disc PermaClutch II |
| Oil capacity: | 58.1 qts 55.0 L |
| Three gears (1-3) plus reverse (R) in four ranges (A-D). | |

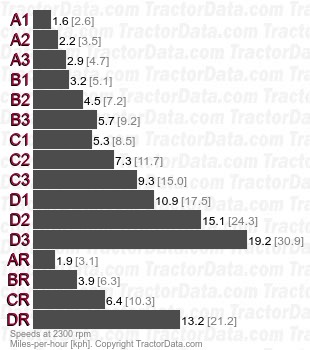

| Speeds | |
|
| Transmission | |
| Transmission: | John Deere PowrReverser |
| Type: | power shuttle |
| Gears: | 16 forward and reverse |
| Clutch: | wet 225mm disc PermaClutch II |
| Oil capacity: | 58.1 qts 55.0 L |
| Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. 30 KPH and 40 KPH maximum speed options available. | |

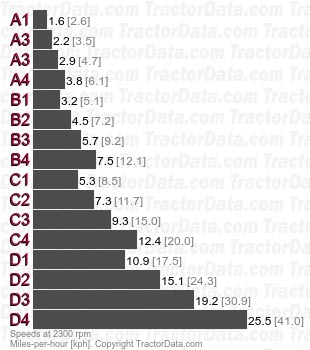

| Speeds | |
|
