Tractors > Mahindra > Max 25

Mahindra Max 25

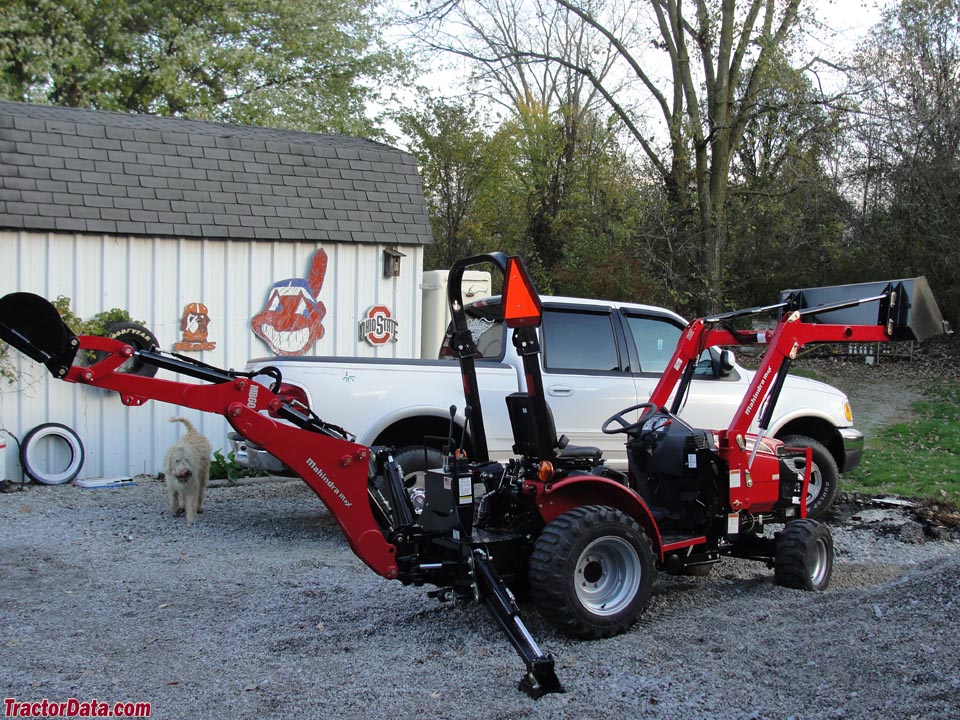

Mahindra Max 25 tractor photo
2012 - 2014   Max Series
Sub-Compact Utility tractor
Series next:Mahindra Max 28 XL
Series back:Mahindra Max 22






Production:

Manufacturer:Mahindra
Original price (USD)
   $13,440 (2012 )


Mahindra Max 25 Engine:

   Mitsubishi 1.3L 3-cyl diesel
full engine details ...


Capacity:

Fuel:6.1 gal [23.1 L]


3-Point Hitch:

Rear Type:1
Control:position control
Rear lift:1,400 lbs [635 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540
Engine RPM:540@2376
Mid PTO:optional
Mid RPM:2000
Engine RPM:2000@2556


Dimensions & Tires:

Weight:1,693 lbs [767 kg]
Front tire:6x12
Rear tire:9.5x16
full dimensions and tires ...


Mahindra Max 25 attachments:

 snowblower
 blade
 front-end loader
 backhoe
all Max 25 attachments ...


Max 25 Serial Numbers:


- Serial numbers unknown -



Mahindra Max 25 Power:

Engine:25 hp [18.6 kW]
PTO (claimed):20 hp [14.9 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Rear valves:1*Optional
Pump flow:4.6 gpm [17.4 lpm]
Steering flow:2.7 gpm [10.2 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:50


Battery:

Number:1
Volts:12
Amp-hours:46
