Tractors > Minneapolis-Moline > G550

Minneapolis-Moline G550

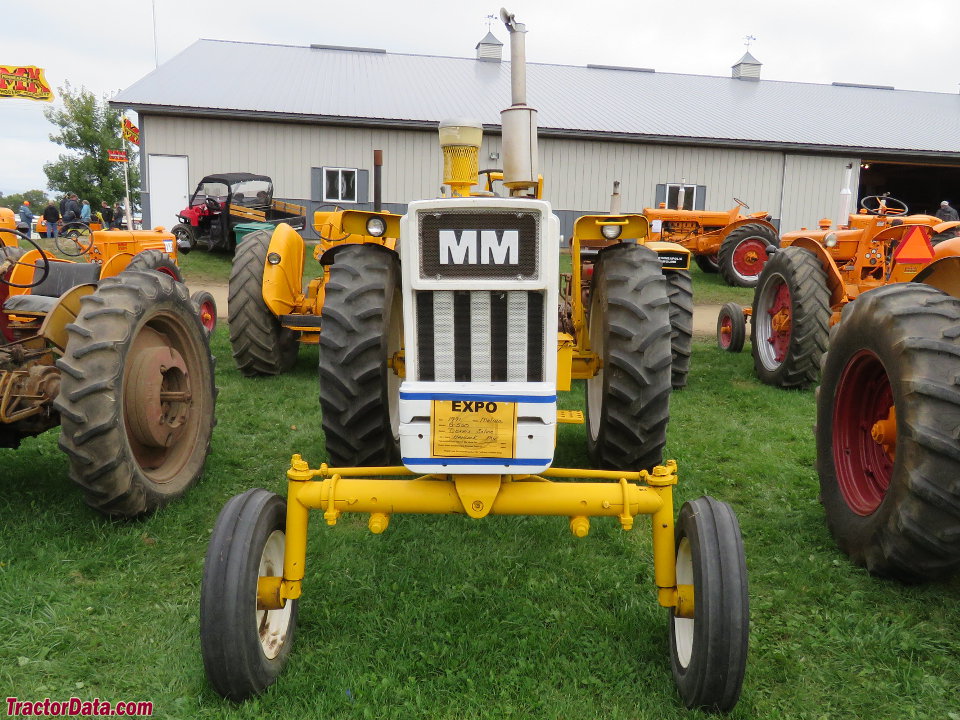

Minneapolis-Moline G550 tractor photo
1971 - 1971
Row-Crop tractor





Note: the Minneapolis-Moline model G550 is the same as the White 1555. The following data is from the 1555 listing.


Production:

Manufacturer:Minneapolis-Moline
Original price (USD)
   $6,500 (1975 )


Minneapolis-Moline G550 Engines:

   Waukesha-Oliver 3.8L 6-cyl diesel
   Waukesha-Oliver 3.8L 6-cyl gasoline
full engine details ...


Capacity:

Fuel:27.5 gal [104.1 L]
Hydraulic system:14 gal [53.0 L]


3-Point Hitch:

Rear Type:II/I
Control:lower-link draft control


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
 1000
 540/1000


Dimensions & Tires:

Wheelbase:99 inches [251 cm]
Weight:6841 lbs [3103 kg]
Front tire:7.50-16
Rear tire:15.5-38
full dimensions and tires ...


G550 Serial Numbers:

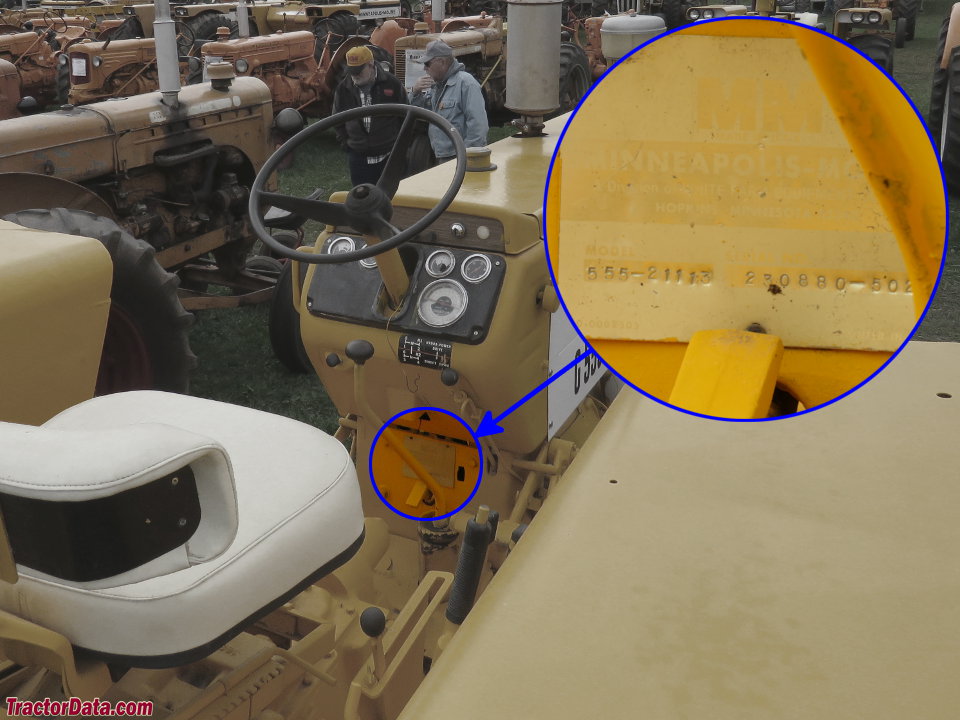

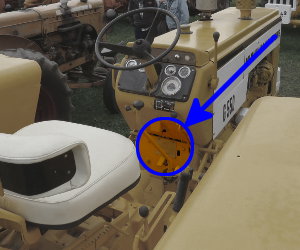

Location:Serial number plate below instrument panel.
photo of G550 serial number

1969: 218-128
1970: 221-295
1971: 225-914
1972: 232-089
1973: 236-883
1974: 244-937
1975: 256-165
Final: 262-877

how to read serial numbers...



Minneapolis-Moline G550 Power:

PTO (claimed):53 hp [39.5 kW]
Drawbar (tested):45.7 hp [34.1 kW]
PTO (tested):53.50 hp [39.9 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:power
Brakes:disc
Cab:Open operator station. Cab optional with available heater.


Hydraulics:

Type:open center
Capacity:14 gal [53.0 L]
Valves:2 to 4


Battery:

Number:1
Volts:12
