Cockshutt 80 Standard

1937 - 1948

Standard-tread tractor

Oliver built

Production
Distributor:	Cockshutt
Manufacturer:	Oliver
Type:	Standard-tread tractor
Factory:	Charles City, Iowa, USA

Variants
Row-crop 80:	tricycle-front
Standard 80:	fixed-tread

Cockshutt 80 Standard Power
Plows:	3
Drawbar (tested):	35.91 hp 26.8 kW
Belt (tested):	41.27 hp 30.8 kW
power test details ...

Cockshutt 80 Standard Engines
Waukesha-Oliver 5.5L 4-cyl kerosene
Waukesha-Oliver 4.9L 4-cyl gasoline
Fuel tank:	13 gal 49.2 L (early)
	17 gal 64.3 L (after 1938)
Engine details ...

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmissions:	3-speed gear
	4-speed gear
Transmission details ...

Photos

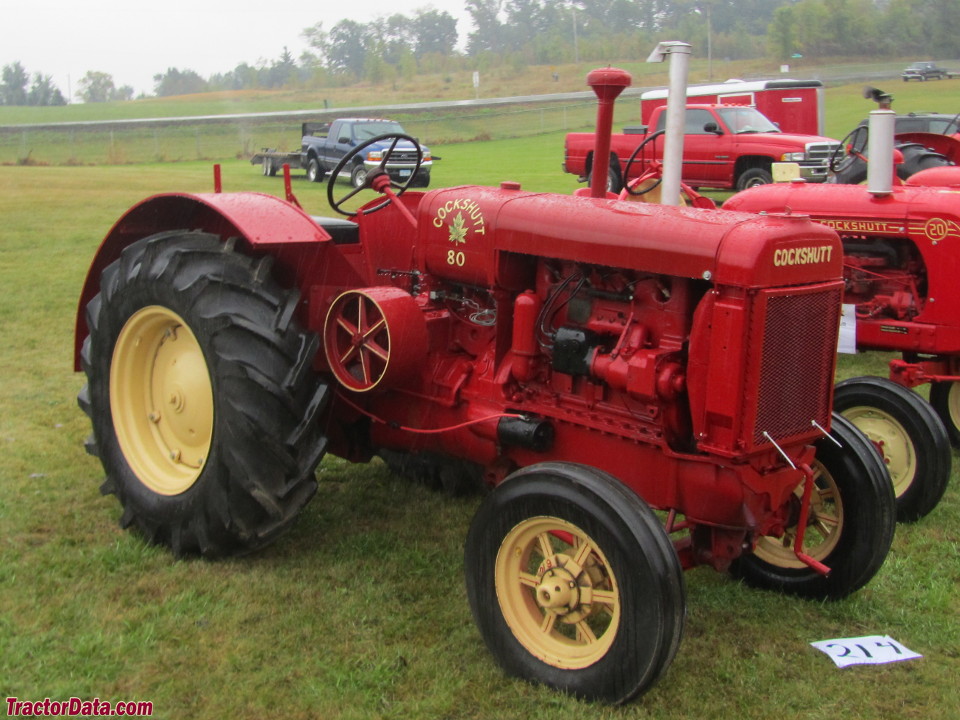

Cockshutt 80 Standard photos...

Dimensions & Tires
Weight:	4,800 lbs 2177 kg
Front tire:	7.50-18
Rear tire:	11.25-24
Full dimensions and tires ...

80 Standard Serial Numbers

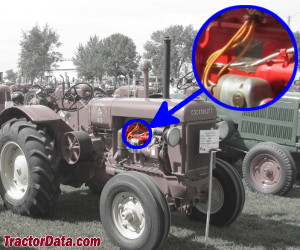

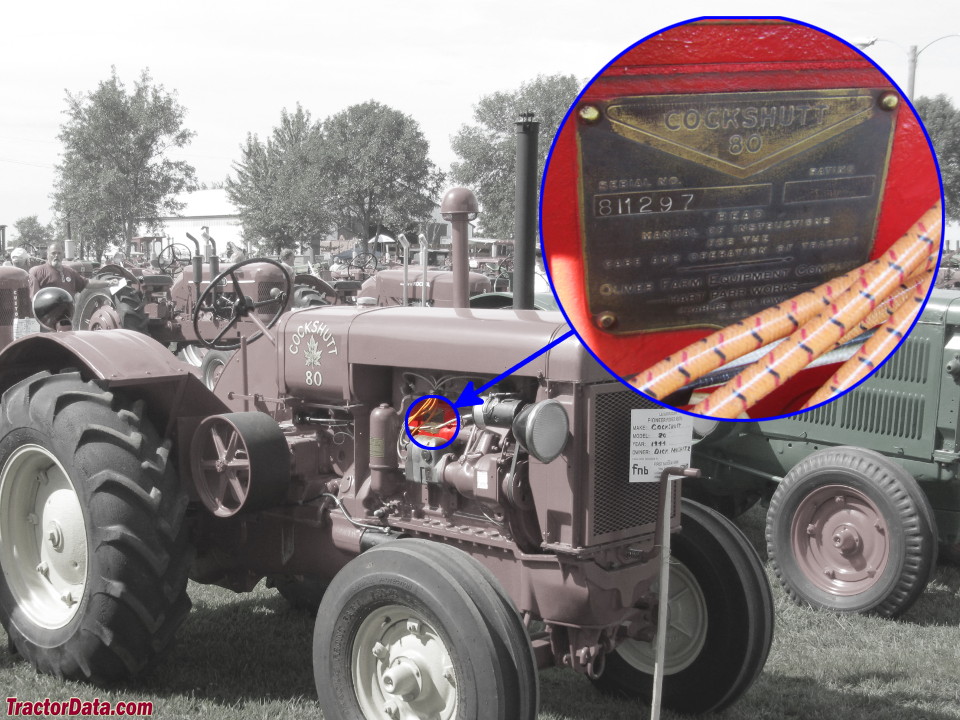

Location:	Serial number plate on the left side of the Cockshutt 80 engine.
photo of 80 Standard serial number
1937:	803929
1938:	803991
1939:	805377
1940:	806880
1941:	808125
1942:	809051
1943:	809991
1944:	810470
1945:	811991
1946:	813067
1947:	814564
1948:	815216
how to read serial numbers...
