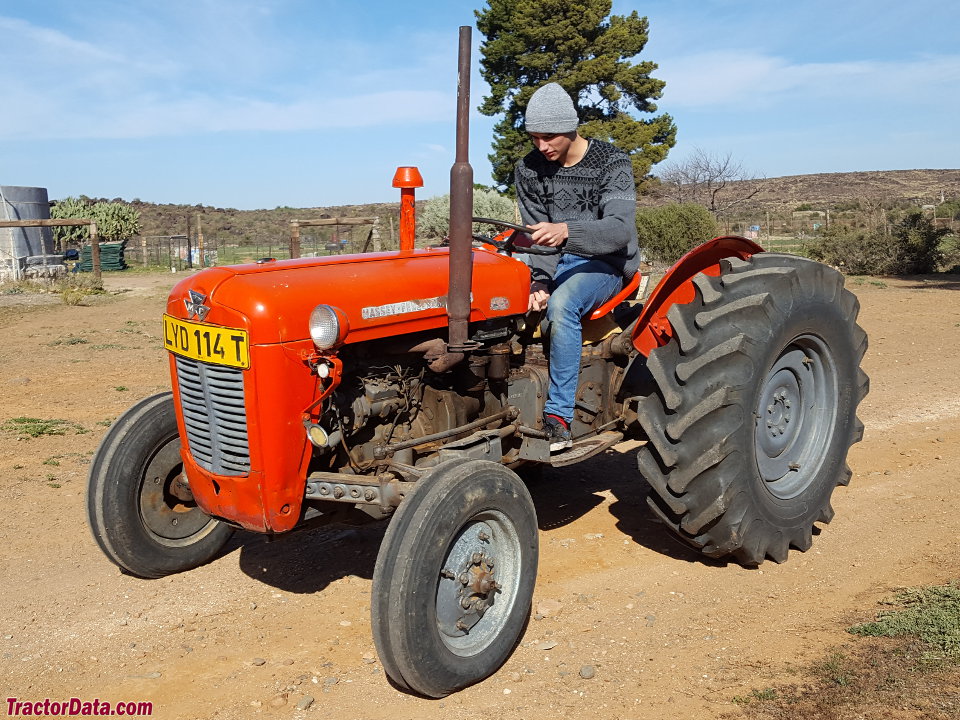

Massey Ferguson 35X
|
|
| Production | |
| Manufacturer | Massey Ferguson |
| Utility tractor | |
| Built in Coventry, England | |
| Massey Ferguson 35X Engine | |
| Perkins 2.5L 3-cyl diesel | |
| Fuel tank | 10.2 gal 38.6 L |
 Engine details ... | |
| Massey Ferguson 35X Transmissions | |
| 6-speed gear | |
| 12-speed partial power shift | |
 Transmission details ... |
| Massey Ferguson 35X Power | |
| Engine | 44.5 hp 33.2 kW |
| Mechanical | |
| Two-wheel drive | |
| Differential lock | mechanical rear OptOptional |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. | |
| Hydraulics | |
| Type | open center |
| Pressure | 2000 psi 137.9 bar |
| Pump flow | 3.7 gpm 14.0 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position and draft control |
| Rear lift | 2500 lbs 1134 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1500 |
| 540@1700 *After 1963 | |
| Dimensions & Tires | |
| Weight | 3302 lbs 1497 kg |
| Front tire | 6.00-16 |
| Rear tire | 12.4/11-28 |
 Full dimensions and tires ... | |
| 35X Serial Numbers | |
| Location: | Serial number plate on the instrument panel. |
| 1962 | 302413 |
| 1963 | 307231 |
| 1964 | 352255 |
FAQ: How to read a serial number table. | |
| References | |
 | |
| 35X Tractor published in 1962, by Massey Ferguson | |
| 35X Tractor published in 1964, by Massey Ferguson | |
| Product Information: 35X Tractor published in 1962, by Massey Ferguson |
