| | 1962 - 1964 |
| Utility tractor |
|
| Transmissions overview |
| 6-speed gear |
| 12-speed partial power shift |
| Transmission |
| Type | gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 32 qts
30.3 L
|

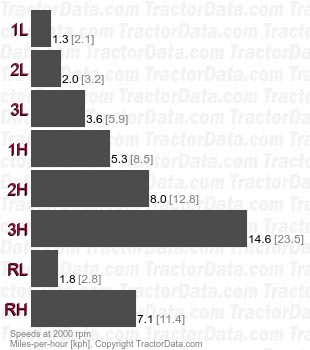

| Speeds |
| With 11-28 rear tires. |
|
| Transmission |
| Transmission | Multi-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 32 qts
30.3 L
|
| Multi-Power adds a Low-High power shift to the basic transmission. The transmission will free-wheel in Multi-Power low, it must be set to high for engine braking. |

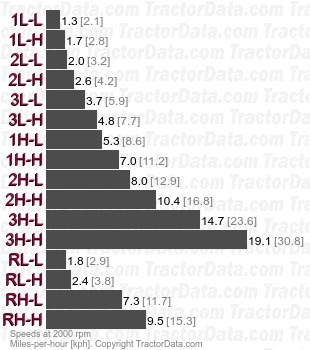

| Speeds |
|
