CaseIH 795

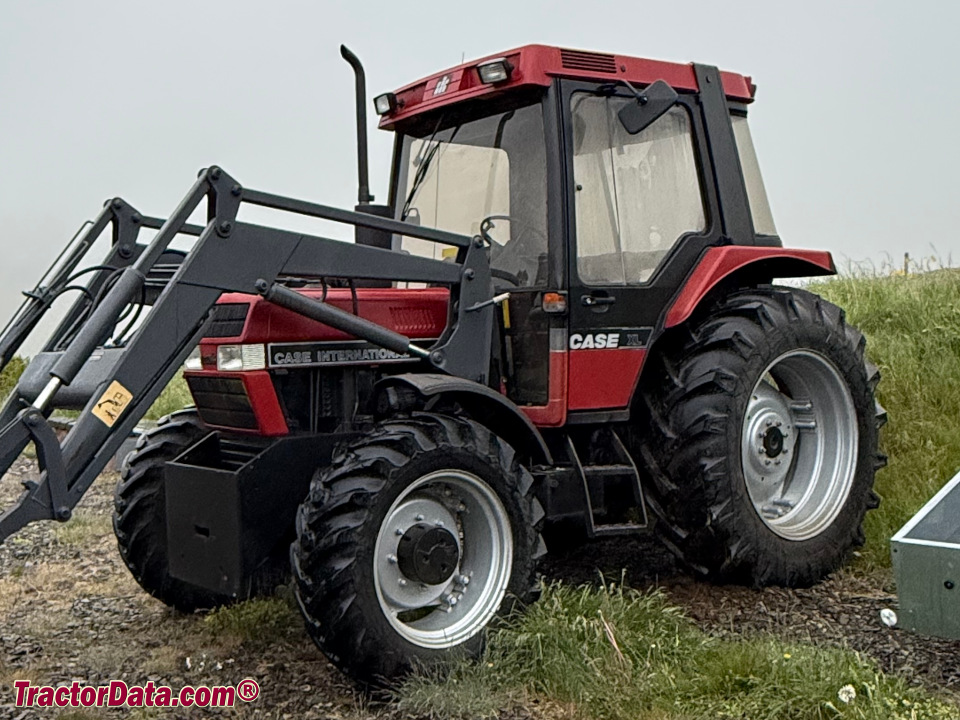

CaseIH 795 tractor photo
1991 - 1994
95 Utility Series
Utility tractor
785
Series:695795895
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
CaseIH 795 Power
Engine:77 hp
57.4 kW
PTO (claimed):69 hp
51.5 kW
CaseIH 795 Engine
CaseIH 4.0L 4-cyl diesel
Fuel tank:29.6 gal
112.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS. Cab available in the 795 XL version.
Transmissions:16-speed
 8-speed
Transmission details ...
Photos
No photos of the CaseIH 795 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:88.2 inches
224 cm
4WD Wheelbase:85.4 inches
216 cm
Weight:6376 to 7480 pounds
Front tire:10.00x16
Rear tire:16.9x34 (2WD)
Full dimensions and tires ...
