John Deere 7230R
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| John Deere 7230R Engine | |
| John Deere 9.0L 6-cyl diesel | |
| Fuel tank | 133 gal (PowrQuad) 503.4 L |
| 138 gal (IVT) 522.3 L | |
 Engine details ... | |
| John Deere 7230R Transmissions | |
| 16-speed partial power shift | |
| 20-speed partial power shift | |
| 20-speed power shift | |
| infinitely variable transmission | |
 Transmission details ... |
| John Deere 7230R Power | |
| Engine (gross) | 230 hp 171.5 kW |
| Engine (max) | 253 hp 188.7 kW |
| PTO (claimed) | 189 hp 140.9 kW |
| Drawbar (tested) | 179.34 hp 133.7 kW |
| PTO (tested) | 225.07 hp 167.8 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | full-locking electrohydraulic rear. Limited slip front axle. Electrohydraulic on TLS Plus front axle with front brakes. |
| Steering | hydrostatic power |
| ActiveCommand Steering optional | |
| CommandView II Cab. AutoTrac ready. ISO 1178.3 ISOBUS connection. JDLink and Service ADVISOR Remote available. | |

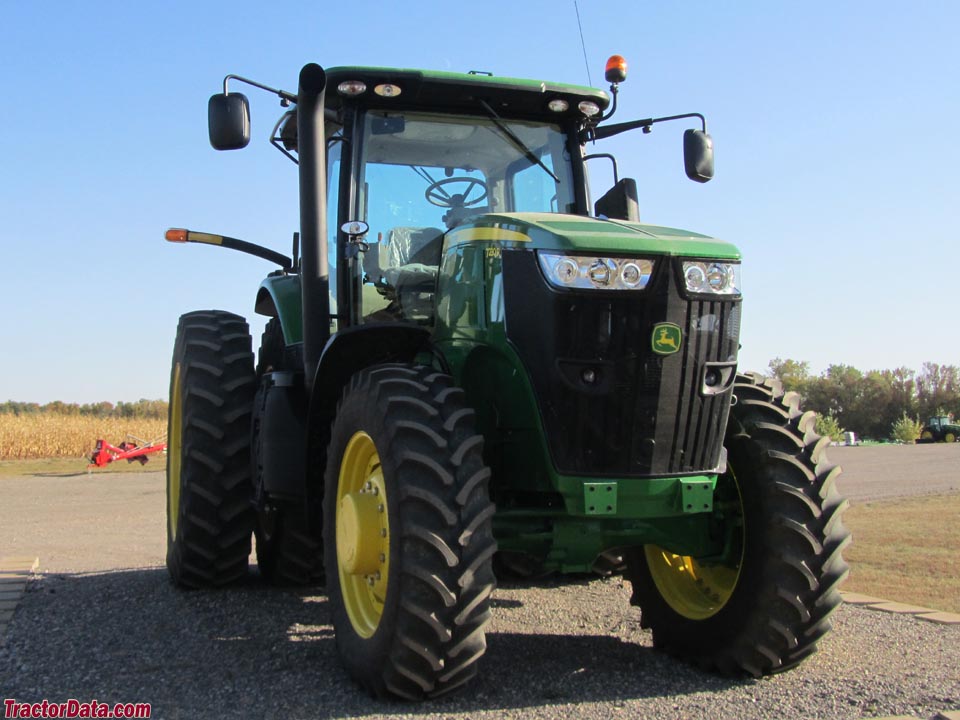

| Photos | |
 | |
 John Deere 7230R photos... | |
| Hydraulics | |
| Type | closed-center pressure and flow compensated (PFC) |
| Pressure | 2958 psi 204.0 bar |
| Rear valves | 6 (max) |
| Mid valves | 0 to 2 |
| Pump flow | 32 gpm 121.1 lpm |
| 43 gpm (optional) 162.8 lpm | |
| 59 gpm (optional) 223.3 lpm | |
| SCV flow | 35 gpm 132.5 lpm |
| Tractor hitch | |
| Rear Type | 3/3N |
| Control | electrohydraulic sensing |
| Rear lift | 12,000 lbs 5443 kg |
| 15,200 lbs (optional) 6894 kg | |
| Front Hitch | 3N (optional) |
| Front lift | 11,464 lbs 5200 kg |
| Drawbar | Category 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional. |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375/1.75) | |
| 540/540E/1000 (1.375/1.75) | |
| 540/540E/1000/1000E (1.375/1.75) | |
| Engine RPM | 540@1950 |
| 540E@1750 | |
| 1000@1950 | |
| 1000E@1950 | |
| Front PTO | optional |
| Front PTO Type | 1000 (1.375) |
| 1000 (1.75) | |
| Dimensions & Tires | |
| Wheelbase | 115.2 inches 292 cm |
| Weight | 24492 to 26585 pounds |
 Full dimensions and tires ... | |
| John Deere 7230R attachments | |
| front-end loader | |
 Attachment details ... |

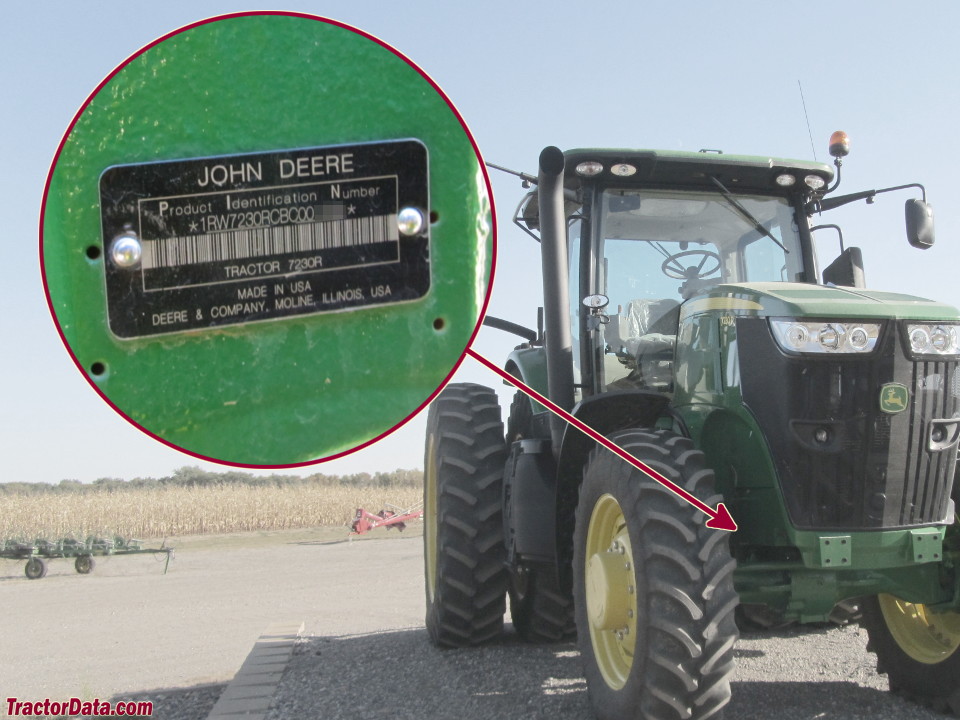

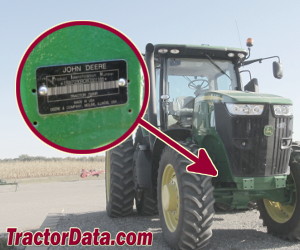

| 7230R Serial Number Location | |
 | |
| Front-right of main tractor frame, above front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery CCA | 925 |
| Battery volts | 12 |
