Tractors > John Deere > 5520N

John Deere 5520N - transmission

John Deere 5520N tractor photo
2002 - 2004
Orchard/Vineyard tractor
Next model:John Deere 5525N
Series back:John Deere 5420N
more John Deere 5520N specifications...






Transmission:

Transmission:John Deere SyncReverser
Type:partially synchronized
Gears:12 forward and reverse
Oil capacity:44 qts [41.6 L]
Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. Directional changes (forward-reverse) and gear shifts (1-4) are synchronized and can be performed while moving by using the clutch. The tractor must be stopped, and clutch used, to shift ranges (A-C).

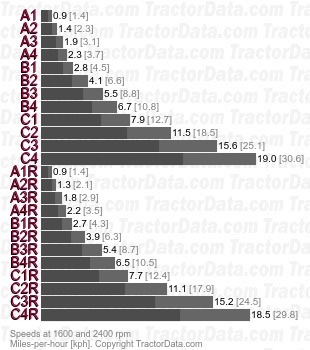

Speeds:With 14.9-28 R1 rear tires.
5520N SyncReverser partially synchronized speeds
