    Kubota L3800

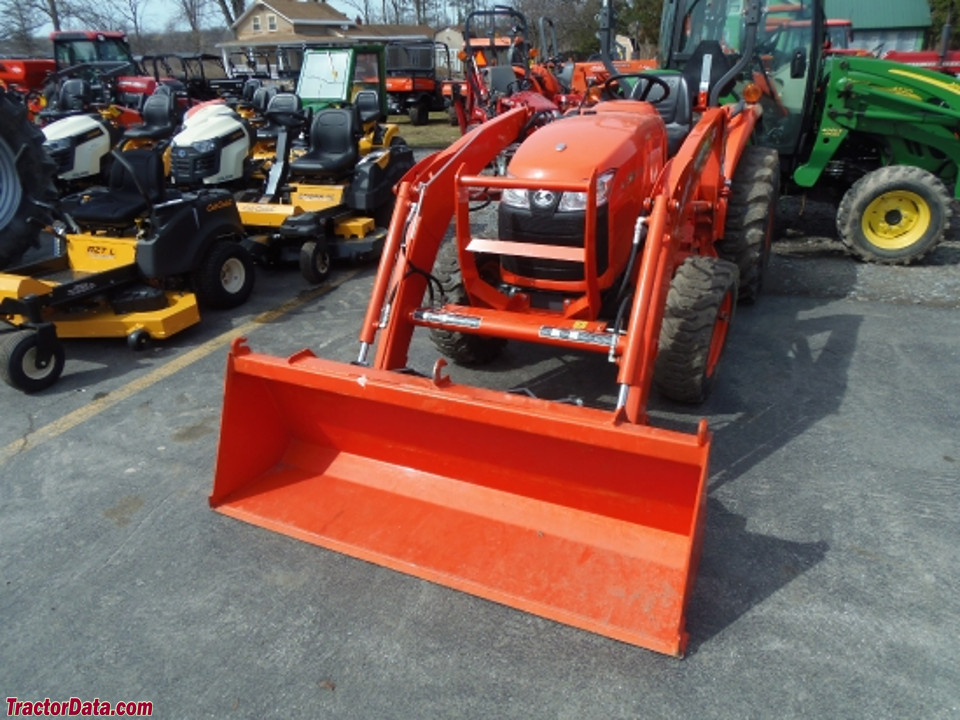

    Kubota L3800 tractor photo
    2011 -    Standard L Series
    Compact Utility tractor
    Previous model:Kubota L3400
    Larger:Kubota L4600
    Smaller:Kubota L3200






    Production:

    Manufacturer:Kubota
    Original price (USD):$14,185 (2011 2WD gear)
     16,908 (2011 4WD hydro)


    Variants:

    L3800F:2WD gear
    L3800DT:4WD gear
    L3800HST:4WD hydro


    Kubota L3800 Engine:

       Kubota 1.8L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:10 gal [37.9 L]
    Hydraulic system:7.1 gal [26.9 L] (gear)
     6.2 gal [23.5 L] (hydro)


    3-Point Hitch:

    Rear Type:I
    Rear lift (at ends):1,998 lbs [906 kg]
    Rear lift (at 24"/610mm):1,435 lbs [650 kg]


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPM:540
    Engine RPM:540@2425 (gear)
    540@2580 (hydro)


    Dimensions & Tires:

    Wheelbase:63.3 inches [160 cm]
    Weight:2480 to 2668 pounds
    Front tire:5.00-15
    Rear tire:11.2-24 (2WD)
    full dimensions and tires ...


    Kubota L3800 attachments:

     front-end loader
     backhoe
    all L3800 attachments ...


    L3800 Serial Numbers:


    - Serial numbers unknown -



    Kubota L3800 Power:

    Engine (gross):37.4 hp [27.9 kW]
    Engine (net):30.3 hp [22.6 kW]
    PTO (claimed):31.5 hp [23.5 kW] (gear)
     30.3 hp [22.6 kW] (hydro)


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:rear standard
    Steering:hydrostatic power
    Brakes:wet disc
    Cab:Foldable two-post ROPS.


    Hydraulics:

    Type:open center
    Capacity:7.1 gal [26.9 L] (gear)
     6.2 gal [23.5 L] (hydro)
    Pump flow:6.3 gpm [23.8 lpm]
    Total flow:10.1 gpm [38.2 lpm]
    Steering flow:3.8 gpm [14.4 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:40
    Charging volts:12


    Battery:

    Number:1
    Cold-cranking amps:490
    Volts:12
