New Holland T9.560

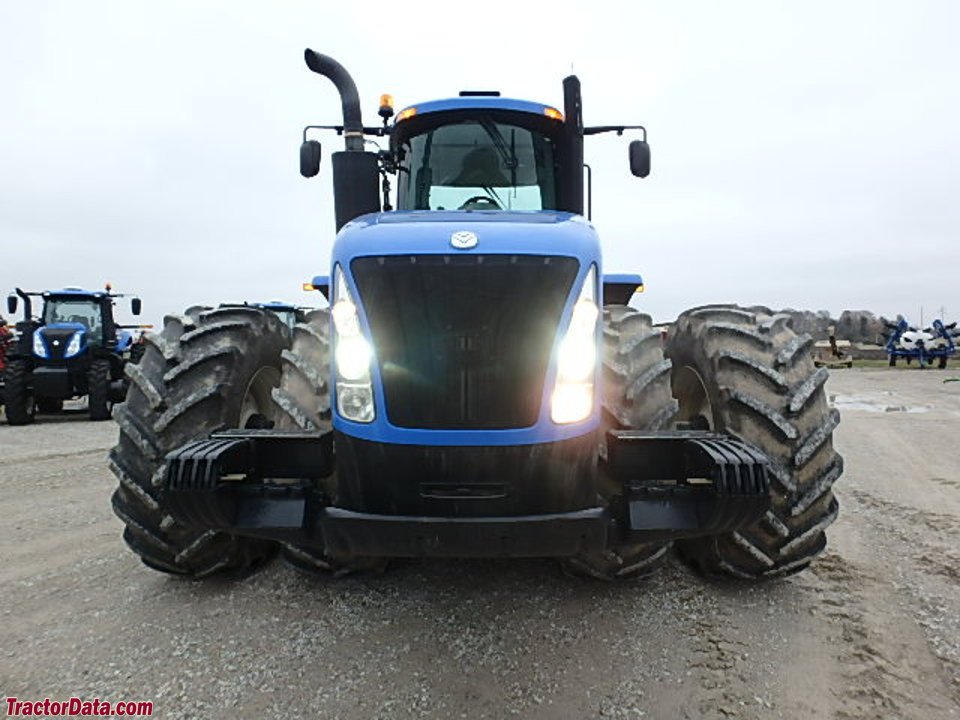

New Holland T9.560 tractor photo
2011 - 2014   T9 Series
Four-wheel Drive (4WD) tractor
Previous model:New Holland T9050
Next model:New Holland T9.565
Series next:New Holland T9.615
Series back:New Holland T9.505






Production:

Manufacturer:New Holland
Factory:Fargo, North Dakota, USA


New Holland T9.560 Engine:

   FPT 12.9L 6-cyl diesel
full engine details ...


Capacity:

Fuel:325 gal [1230.1 L]
Exhaust fluid (DEF):46 gal [174.1 L]


3-Point Hitch:

Rear Type:4N/3
Rear lift (at 24"/610mm):20,000 lbs [9072 kg]


Power Take-off (PTO):

Rear PTO:optional
Rear RPM:1000 (1-3/4)


Dimensions & Tires:

Wheelbase:148 inches [375 cm]
full dimensions and tires ...


T9.560 Serial Numbers:


- Serial numbers unknown -



New Holland T9.560 Power:

Engine:507 hp [378.1 kW]
Drawbar (tested):392.34 hp [292.6 kW]
PTO (tested):499.16 hp [372.2 kW]
power test details ...


Mechanical:

Chassis:4x4 articulated 4WD
Brakes:hydraulic wet disc
Cab:Cab standard.


Hydraulics:

Type:closed center load sensing
Pressure:2000 psi [137.9 bar]
Rear valves:4 to 8
Pump flow:45 gpm [170.3 lpm]
Total flow:42 gpm [159.0 lpm]
 57 gpm [215.7 lpm]
 98 gpm [370.9 lpm] (MegaFlow)
 113 gpm [427.7 lpm] (MegaFlow)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:200


Battery:

Number:2
Cold-cranking amps:1000
Volts:12
