CaseIH Steiger 550 Quadtrac

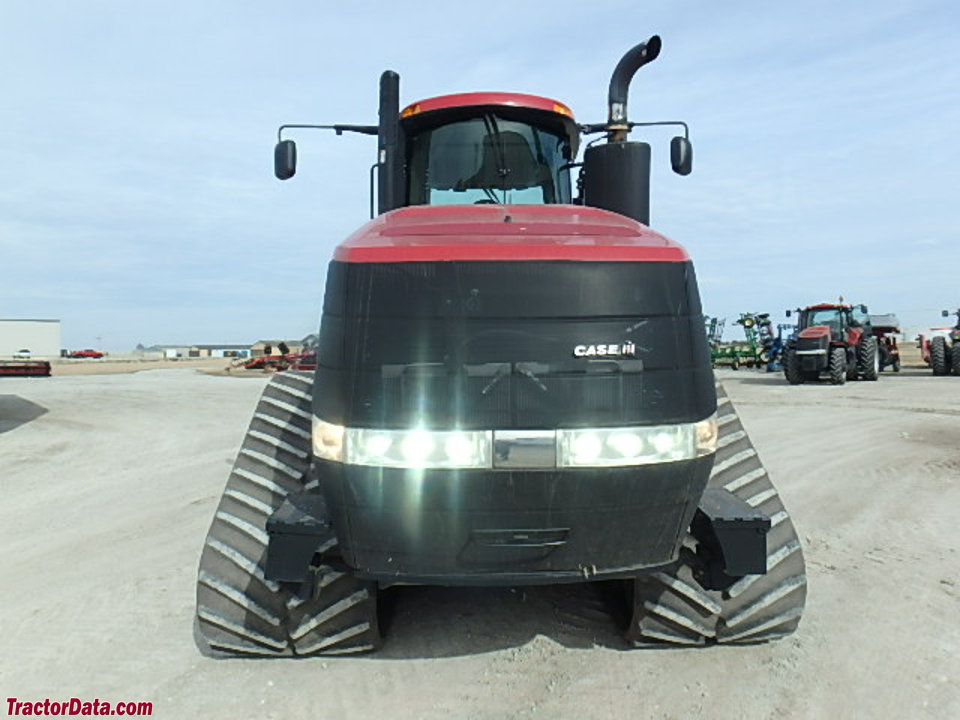

CaseIH Steiger 550 Quadtrac tractor photo
2011 -
Articulated Crawler tractor
Previous model:CaseIH Steiger 535QT
Next model:CaseIH Steiger 580 Quadtrac
Series next:CaseIH Steiger 600 Quadtrac
Series back:CaseIH Steiger 500 Quadtrac






Production:

Manufacturer:CaseIH
Factory:Fargo, North Dakota, USA


Variants:

550:wheeled tractor
550QT:crawler tractor


CaseIH Steiger 550 Quadtrac Engine:

   Iveco 12.9L 6-cyl diesel
full engine details ...


Capacity:

Fuel:470 gal [1779.0 L]
Exhaust fluid (DEF):64 gal [242.2 L]


3-Point Hitch:

Rear Type:4N
Rear lift:19,728 lbs [8948 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000 (1-3/4)


Dimensions & Tires:

Wheelbase:154 inches [391 cm]
Weight:53804 to 56000 pounds
full dimensions and tires ...


Steiger 550 Quadtrac Serial Numbers:


- Serial numbers unknown -



CaseIH Steiger 550 Quadtrac Power:

Engine:550 hp [410.1 kW]
PTO (claimed):475 hp [354.2 kW]
Drawbar (tested):434.20 hp [323.8 kW]
PTO (tested):535.77 hp [399.5 kW]
power test details ...


Mechanical:

Chassis:articulated crawler
Cab:Surveyor cab standard.


Hydraulics:

Type:closed center pressure flow compensated (PFC)
Rear valves:4 to 8
Pump flow:35 gpm [132.5 lpm]
Total flow:42 gpm [159.0 lpm]
 56 gpm [212.0 lpm] (High Flow)
 113 gpm [427.7 lpm] (Twin Flow)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:200


Battery:

Number:2
Cold-cranking amps:1000
Volts:12
