CaseIH Steiger 450 Quadtrac

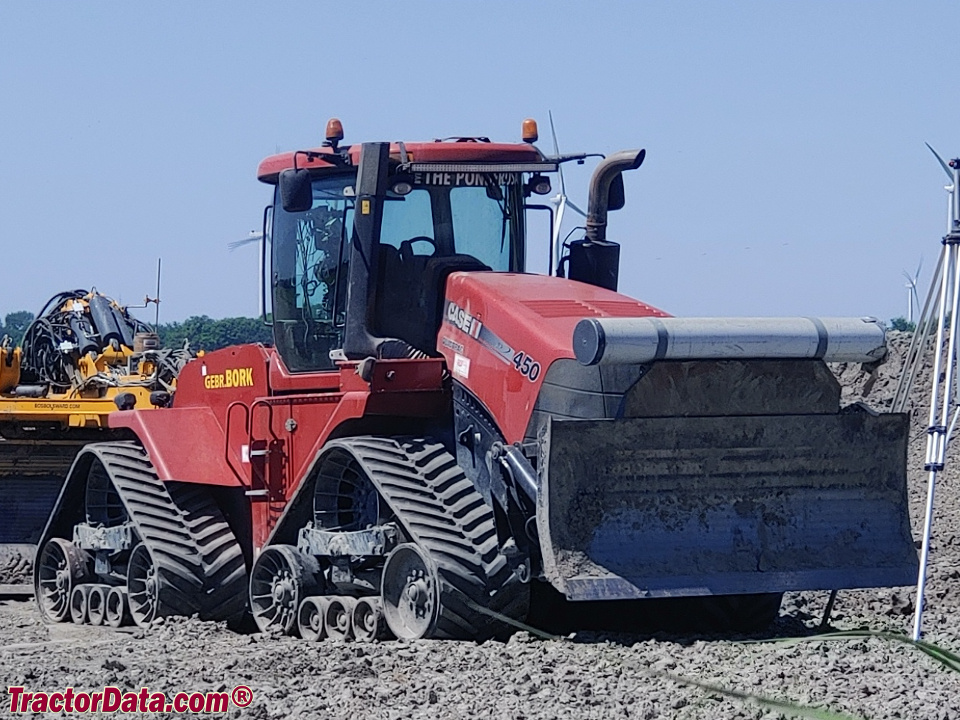

CaseIH Steiger 450 Quadtrac tractor photo
2011 -
Articulated Crawler tractor
Steiger 435QT
Series:Steiger 450 QuadtracSteiger 500 Quadtrac
Steiger 470 Quadtrac
Production
Manufacturer:CaseIH
Type:Articulated Crawler tractor
Factory:Fargo, North Dakota, USA
Variants
450:wheeled tractor
450QT:crawler tractor
CaseIH Steiger 450 Quadtrac Power
Engine:450 hp
335.6 kW
PTO (claimed):385 hp
287.1 kW
Drawbar (tested):351.18 hp
261.9 kW
PTO (tested):455.06 hp
339.3 kW
power test details ...
CaseIH Steiger 450 Quadtrac Engine
Iveco 12.9L 6-cyl diesel
Fuel tank:310 gal
1173.4 L
Exhaust fluid (DEF):64 gal
242.2 L
Engine details ...
Mechanical
Chassis:articulated crawler
Cab:Surveyor cab standard.
Transmission:16-speed full power shift
Transmission details ...
Photos
No photos of the CaseIH Steiger 450 Quadtrac are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:closed center pressure flow compensated (PFC)
Rear valves:4 to 8
Pump flow:35 gpm
132.5 lpm
Total flow:42 gpm
159.0 lpm
 56 gpm
212.0 lpm (High Flow)
 113 gpm
427.7 lpm (Twin Flow)
Tractor hitch
Rear Type:4N
Rear lift:19,728 lbs
8948 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1-3/4)
Dimensions & Tracks
Wheelbase:154 inches
391 cm
Weight:53554 to 54290 pounds
tracks
Full dimensions and tracks ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:200
Batteries:2
Battery CCA:1000
Battery volts:12
