Tractors > Fendt > 716 Vario

Fendt 716 Vario

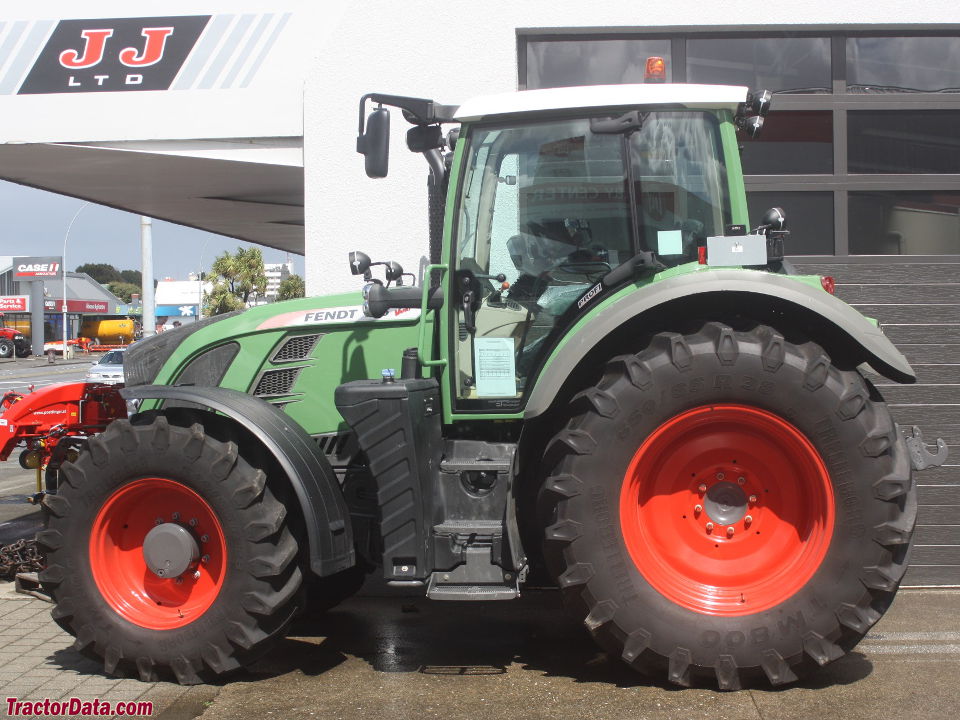

Fendt 716 Vario tractor photo
2006 - 2017   700 Vario Series
Model years
Row-Crop tractor
Series next:Fendt 718 Vario
Series back:Fendt 714 Vario






Production:

Manufacturer:Fendt
Factory:Marktoberdoft, Germany


Fendt 716 Vario Engine:

   Deutz 6.1L 6-cyl diesel
full engine details ...


Capacity:

Fuel:89.8 gal [339.9 L]


3-Point Hitch:

Rear Type:III/II
Rear lift:12,233 lbs [5548 kg]
Front lift:5,520 lbs [2503 kg]


Power Take-off (PTO):

Rear RPM:540/540E/1000
Front RPM:540 (optional)
 1000 (optional)


Dimensions & Tires:

Wheelbase:106.3 inches [270 cm]
Weight:14,560 lbs [6604 kg]
full dimensions and tires ...


Fendt 716 Vario attachments:

 front-end loader
all 716 Vario attachments ...


716 Vario Serial Numbers:


- Serial numbers unknown -



Fendt 716 Vario Power:

Engine (gross):167 hp [124.5 kW]
Engine (net):150 hp [111.9 kW]
Engine (max):172 hp [128.3 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Brakes:wet discs
Cab:Cab standard with air-conditioning.


Hydraulics:

Type:load sensing
Pressure:2,900 psi [200.0 bar]
Total flow:29.1 gpm [110.1 lpm]
 40.68 gpm [154.0 lpm] (optional)


Electrical:

Charging system:alternator
Charging amps:200


Battery:

Volts:12
Amp-hours:170
