Tractors > John Deere > 5090R

John Deere 5090R - engine

John Deere 5090R tractor photo
2009 - 2018   5R Series
Model years
Utility tractor
Previous model:John Deere 5820
Series next:John Deere 5100R
Series back:John Deere 5080R
more John Deere 5090R specifications...

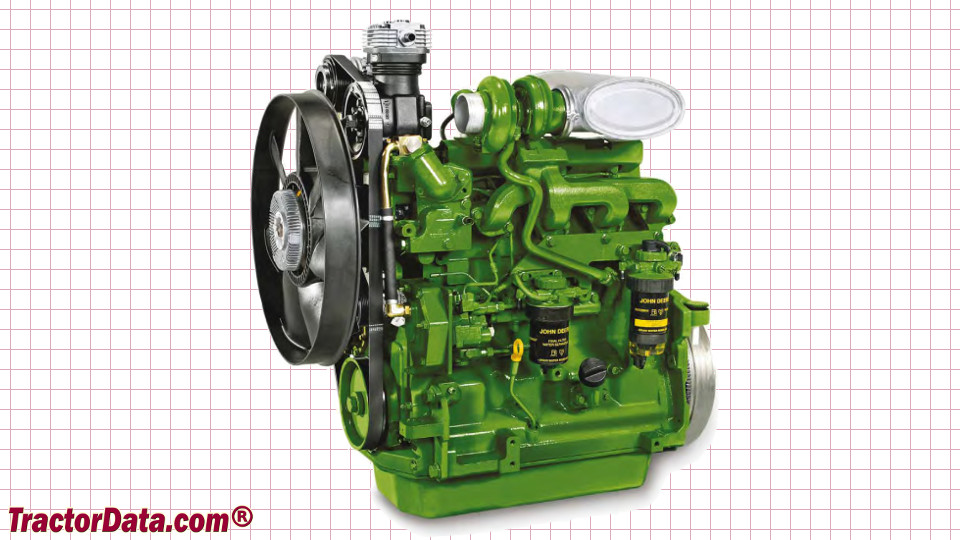

Engine Detail:

 John Deere 4045HL284
 turbocharged diesel
 4-cylinder 8-valve
 276 ci [4.5 L]
Bore/Stroke:4.19x5.00 inches [106 x 127 mm]
Emissions:Tier III/Stage IIIa
Power:90 hp [67.1 kW]
Fuel system:high-pressure common rail
Rated RPM:2300
Firing order:1-3-4-2
Starter volts:12
Oil capacity:20.6 qts [19.5 L]
Oil change:500 h
Coolant capacity:29.6 qts [28.0 L]
Coolant change:1500 h
