John Deere 5090R Transmission
|
|
| Transmission options | |
| 16-speed four-speed power shuft | |
| 32-speed creeper |
| Transmission | |
| Transmission | PowrQuad Plus |
| Type | four-speed power shuft |
| Gears | 16 forward and reverse |
| Clutch | electro-hydraulic wet disc |
| Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever. | |

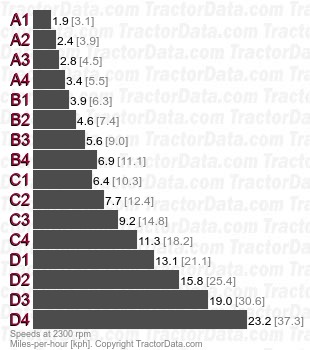

| Speeds | |
| With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds. | |
|
| Transmission | |
| Transmission | AutoQuad Plus |
| Type | four-speed power shuft |
| Gears | 16 forward and reverse |
| Clutch | electro-hydraulic wet disc |
| Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever. Programmable automatic gear shifting. | |
| Speeds | |
| With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds. | |
|
| Transmission | |
| Transmission | PowerQuad Plus with underdrive |
| Type | creeper |
| Gears | 32 forward and reverse |
| Clutch | electro-hydraulic wet disc |

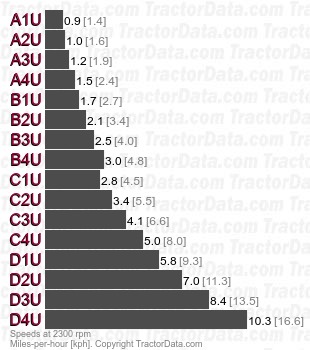

| Speeds | |
| With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds. | |
|
| Transmission | |
| Transmission | AutoQuad Plus with underdrive |
| Type | creeper |
| Gears | 32 forward and reverse |
| Clutch | electro-hydraulic wet disc |
| Speeds | |
| With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds. | |
|
