Tractors > Claas > Axos 340 CX
      -Brand search:


    Claas Axos 340 CX

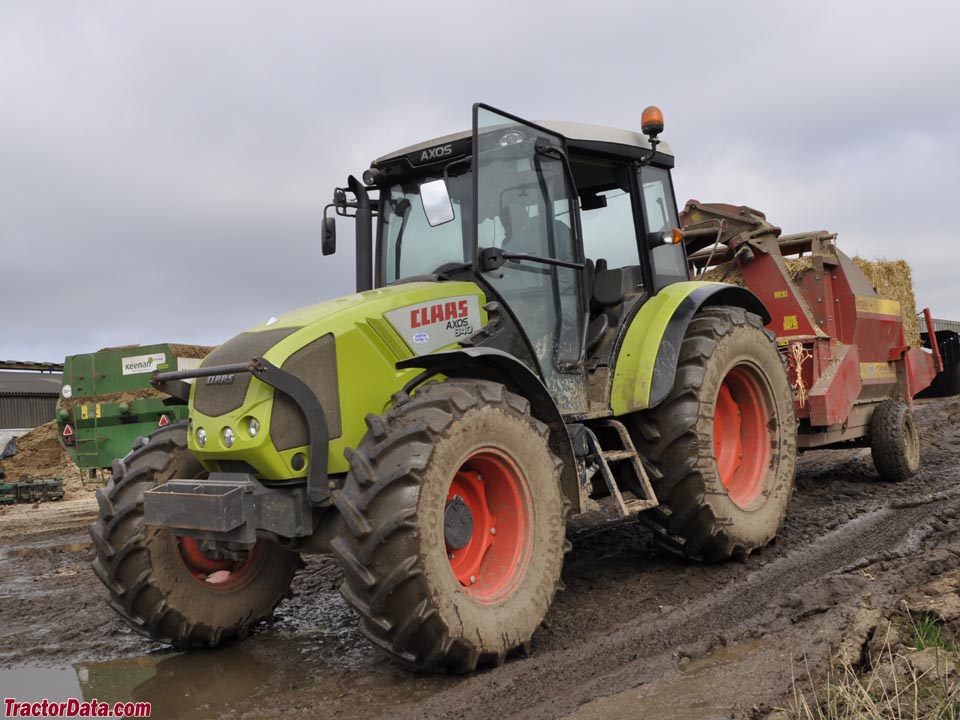

    Claas Axos 340 CX tractor photo
    2008 -    Axos Series
    Utility tractor
    Smaller:Claas Axos 330 CX






    Production:

    Manufacturer:Claas
    Factory:Le Mans, France


    Claas Axos 340 CX Engine:

       Perkins 4.4L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:38.3 gal [145.0 L]


    3-Point Hitch:

    Rear Type:II
     III/II (optional)
    Rear lift (at 24"/610mm):8,378 lbs [3800 kg]
    Front Hitch:optional
    Front lift:6,173 lbs [2800 kg]


    Power Take-off (PTO):

    Rear RPM:540/1000
     540/540E (optional)
     540/540E/1000 (optional)
    Front PTO:optional
    Front RPM:1000


    Dimensions & Tires:

    Wheelbase:98 inches [248 cm]
    Front tire:13.6R28
    Rear tire:16.9R38
    full dimensions and tires ...


    Axos 340 CX Serial Numbers:


    - Serial numbers unknown -



    Claas Axos 340 CX Power:

    Engine:102 hp [76.1 kW]


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Cab:High-profile cab standard (low-profile optional) with heat and opening rear window. Optional air-conditioning, radio, opening front window, and sunroof. ROPS optional.


    Hydraulics:

    Valves:up to 3
    Total flow:15.9 gpm [60.2 lpm]


    Page information:

    Last update:March 13, 2014
    Copyright:Copyright 2014 TractorData LLC
    Contact:Peter@TractorData.com
    ©2000-2014 - TractorData™. Notice: Every attempt is made to ensure the data listed is accurate. However, differences between sources, incomplete listings, errors, and data entry mistakes do occur. Consult official literature from the manufacturer before attempting any service or repair.
