| Transmission |
| Type: | partially synchronized
|
| Gears: | 12 forward and reverse
|
| Oil capacity: | 37 qts
35.0 L
|
| Oil type: | | 10oF [-12oC]↑ | : JDM J20C | | 70o↔-40oF [21o↔-40oC] | : JDM J20D |
|
| Four gears in three ranges with left-hand shuttle. Synchronized shift (using clutch) between gears. Tractor must be stopped to shift ranges or shuttle. |

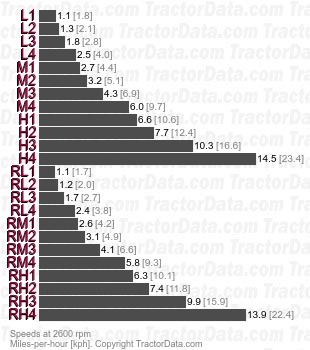

| Speeds |
| With 12.4-28 rear tires. |
|
