Century 2035 Transmission

Century 2035 tractor photo
Utility tractor
Kukje built
Type:partially synchronized
Gears:12 forward and reverse
Clutch:mechanical dry disc
Oil capacity:37 qts
35.0 L
Oil type:
10oF [-12oC] : JDM J20C
70o↔-40oF [21o↔-40oC]   : JDM J20D

Four gears in three ranges with left-hand shuttle. Synchronized shift (using clutch) between gears. Tractor must be stopped to shift ranges or shuttle.
With 12.4-28 rear tires.

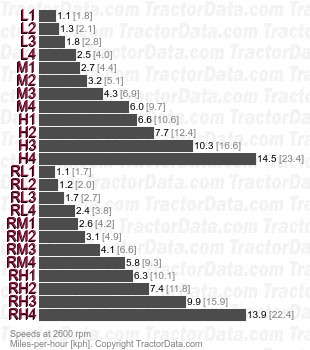

2035  partially synchronized speeds
