Tractors > Landini > 5-110H

Landini 5-110H

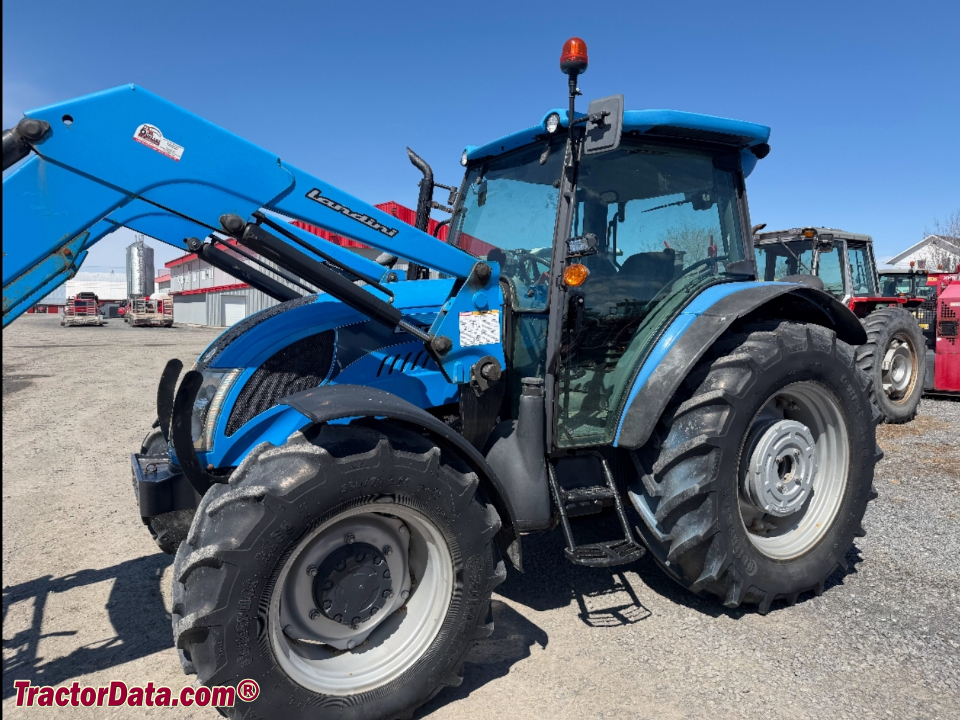

Landini 5-110H tractor photo
2010 -    5H Series
Series back:Landini 5-100H






Production:

Manufacturer:Landini


Landini 5-110H Engine:

   Perkins 4.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:27 gal [102.2 L]


3-Point Hitch:

Rear Type:II
Rear lift:9,570 lbs [4340 kg]
Front Hitch:II (optional)
Front lift:3,960 lbs [1796 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/750
 540/1000 (optional)
 540/750/1000 (optional)
 ground (optional)


Dimensions & Tires:

Wheelbase:92 inches [233 cm]
Weight:8,030 lbs [3642 kg]
Front tire:380/70R24
Rear tire:480/70R34
full dimensions and tires ...


5-110H Serial Numbers:


- Serial numbers unknown -



Landini 5-110H Power:

Engine:102 hp [76.1 kW]
PTO (claimed):86.5 hp [64.5 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Brakes:wet disc
Cab:Powerfarm cab standard. Air-conditioning and pneumatic seat optional.


Hydraulics:

Valves:2 to 4
Pump flow:13.8 gpm [52.2 lpm]
Total flow:21.6 gpm [81.8 lpm]
