CaseIH Farmall 65A

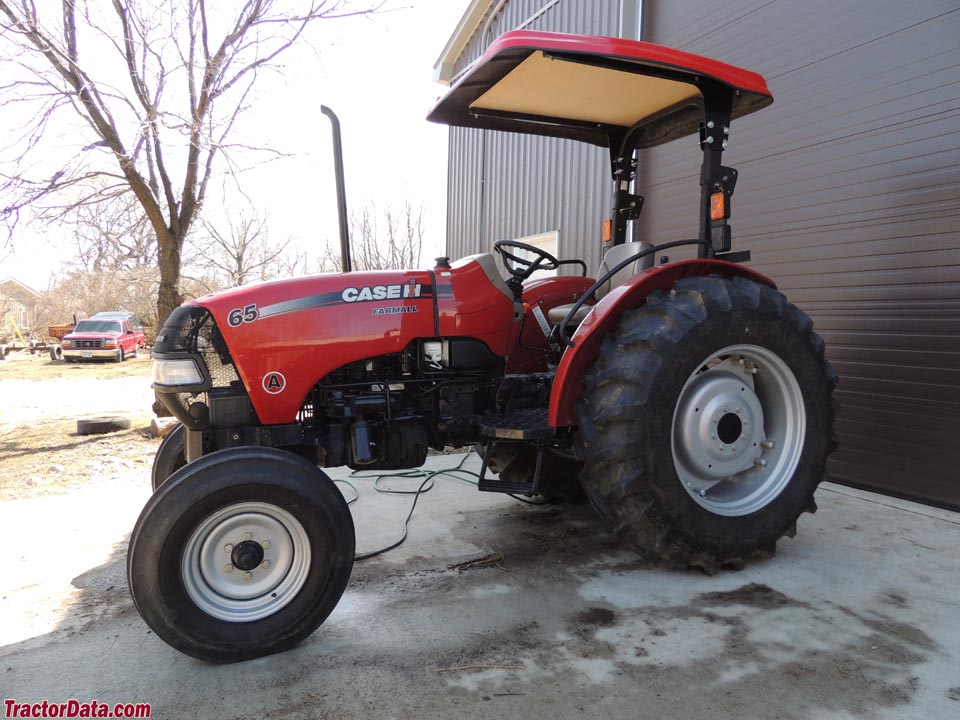

CaseIH Farmall 65A tractor photo
2010 -    Farmall A Series
Utility tractor
Series next:CaseIH Farmall 75A
Series back:CaseIH Farmall 55A






Production:

Manufacturer:CaseIH
Factory:India


CaseIH Farmall 65A Engine:

   FPT 3.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:16.4 gal [62.1 L]
Steering:8.5 qts [8.0 L]


3-Point Hitch:

Rear Type:2/1
Control:position control and mechanical draft sensing
Rear lift (at 24"/610mm):2,954 lbs [1339 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

Weight:5059 to 5688 pounds
Front tire:7.50x16
2WD Rear tire:16.9x30
full dimensions and tires ...


CaseIH Farmall 65A attachments:

 front-end loader
all Farmall 65A attachments ...


Farmall 65A Serial Numbers:


- Serial numbers unknown -



CaseIH Farmall 65A Power:

Engine (gross):65 hp [48.5 kW]
PTO (claimed):57 hp [42.5 kW]
PTO (tested):61.70 hp [46.0 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:mechanical rear differential lock with foot pedal, limited slip 4WD front axle
Steering:hydrostatic power
Brakes:differential mechanical dry disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center fixed displacement gear pump
Valves:1 or 2
Pump flow:10.4 gpm [39.4 lpm]
Total flow:18.7 gpm [70.8 lpm]
Steering cap.:8.5 qts [8.0 L]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:65
Charging volts:12


Battery:

Number:1
Cold-cranking amps:800
Volts:12
