| | 1995 - 2001 |
| Four-wheel Drive (4WD) tractor |
|
Series map:
8360
8425
360.0hp
425.0hp
| Engine Detail |
| Cummins N14 |
| turbocharged aftercooled diesel |
| 6-cylinder 24-valve |
| liquid-cooled inline |
| Displacement | 855 ci
14.0 L
|
| Bore/Stroke | 5.50x6.00 inches
140 x 152 mm
|
| Power | 360 hp
268.5 kW
|
| Fuel system | direct injection
|
| Air cleaner | dual paper elements with aspirator
|
| Pre-heating | coolant heater
|
| Compression | 16.5:1
|
| Rated RPM | 2100
|
| Idle RPM | 825-2400
|
| Torque | 1215 lb-ft
1647.5 Nm
|
| Torque RPM | 1400
|
| Starter volts | 12
|

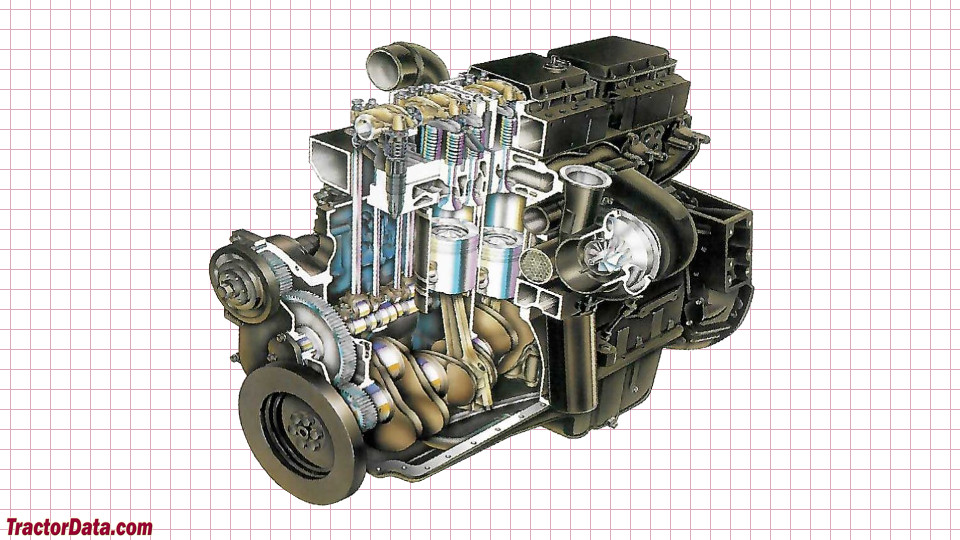

| AGCO 8360 Engine |
 |
