| | 1995 - 2001 |
| Four-wheel Drive (4WD) tractor |
|
Series map:
8360
8425
360.0hp
425.0hp
| Engine options |
| Cummins 14.0L 6-cyl diesel |
| Detroit Diesel 12.7L 6-cyl diesel |
| Engine Detail |

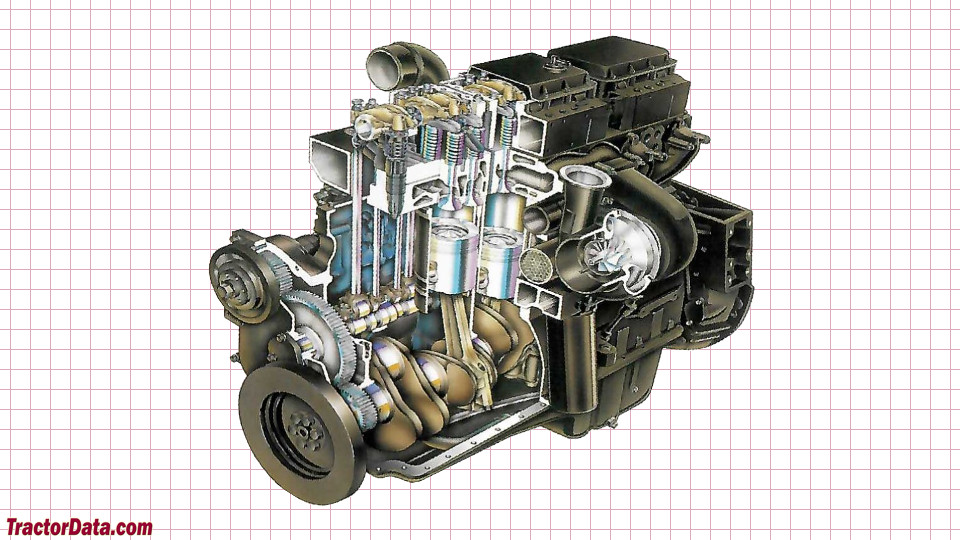

| Cummins N14 |
| turbocharged aftercooled diesel |
| 6-cylinder 24-valve |
| liquid-cooled inline |
| Displacement | 855 ci
14.0 L
|
| Bore/Stroke | 5.50x6.00 inches
140 x 152 mm
|
| Power | 425 hp
316.9 kW
|
| Fuel system | direct injection
|
| Air cleaner | dual paper elements with aspirator
|
| Pre-heating | coolant heater
|
| Compression | 16.5:1
|
| Rated RPM | 2100
|
| Torque | 1500 lb-ft
2034.0 Nm
|
| Torque RPM | 1400
|
| Starter volts | 12
|
| AGCO 8425 Engine |
 |
| Engine Detail |

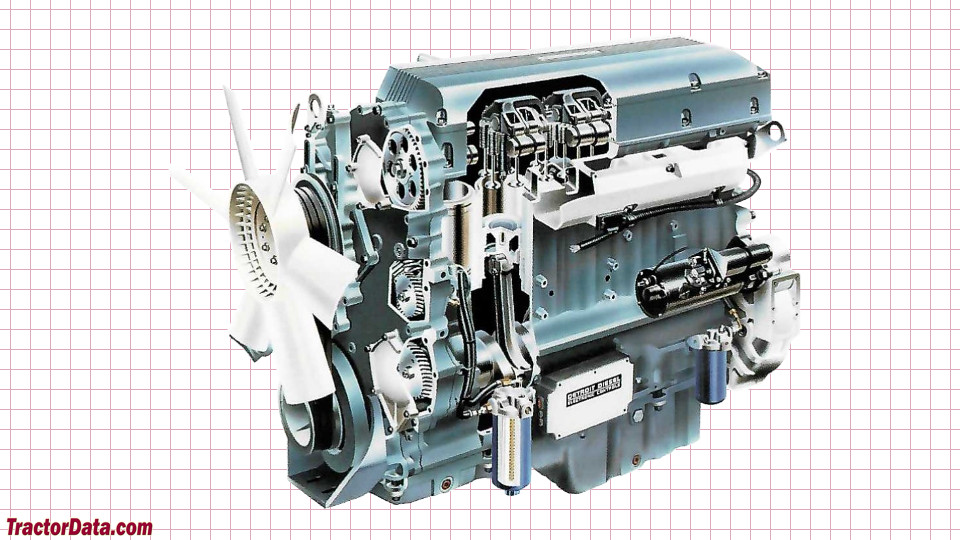

| Detroit Diesel Series 60 |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled inline |
| The Detroit Diesel engine was an option on the 8425 through 1998. Starting in 1999, only the Cummins engine was available. |
| Displacement | 774 ci
12.7 L
|
| Power | 425 hp
316.9 kW
|
| Fuel system | direct injection
|
| Pre-heating | coolant heater
|
| Rated RPM | 2100
|
| Torque | 1500 lb-ft
2034.0 Nm
|
| Torque RPM | 1200
|
| AGCO 8425 Engine |
 |
