CaseIH Farmall 105U

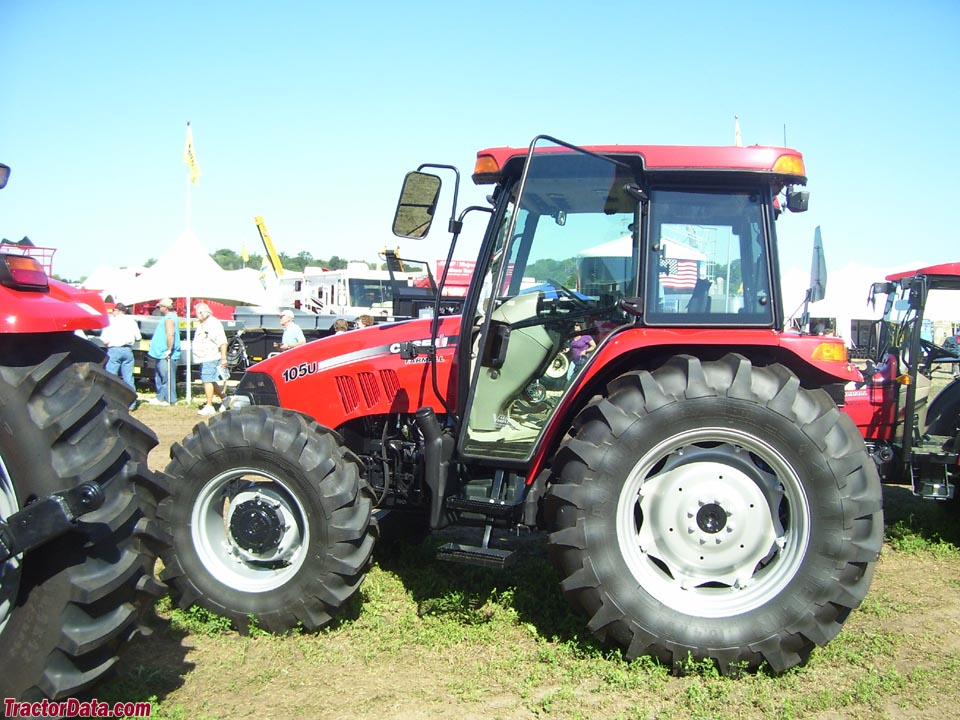

CaseIH Farmall 105U tractor photo
2008 - 2017   Farmall U Series
Model years
Utility tractor
Previous model:CaseIH JX1100U
Series back:CaseIH Farmall 95U






Production:

Manufacturer:CaseIH
Factory:Jesi, Italy


CaseIH Farmall 105U Engine:

   FPT 4.5L 4-cyl diesel
full engine details ...


Capacity:

Fuel:33.5 gal [126.8 L]


3-Point Hitch:

Rear Type:2
Control:mechanical lower-link draft control, optional electronic draft control (EDC)
Rear lift (at 24"/610mm):5,745 lbs [2605 kg]
 6,445 lbs [2923 kg] (EDC)


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000


Dimensions & Tires:

Wheelbase:92.2 inches [234 cm] (2WD)
 92.5 inches [234 cm] (4WD)
Weight:7.275 to 7936 pounds
full dimensions and tires ...


CaseIH Farmall 105U attachments:

 front-end loader
all Farmall 105U attachments ...


Farmall 105U Serial Numbers:


- Serial numbers unknown -



CaseIH Farmall 105U Power:

Engine (gross):105 hp [78.3 kW]
PTO (claimed):90 hp [67.1 kW]
PTO (tested):94.4 hp [70.4 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Straddle deck platform with ROPS
 cab optional


Hydraulics:

Type:open center
Valves:2 rear, 1 mid (optional)
Pump flow:16.1 gpm [60.9 lpm]
Total flow:26.5 gpm [100.3 lpm]
Steering flow:10.4 gpm [39.4 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:120


Battery:

Number:1
Cold-cranking amps:960
Volts:12
