Tractors > Challenger > MT855C

Challenger MT855C

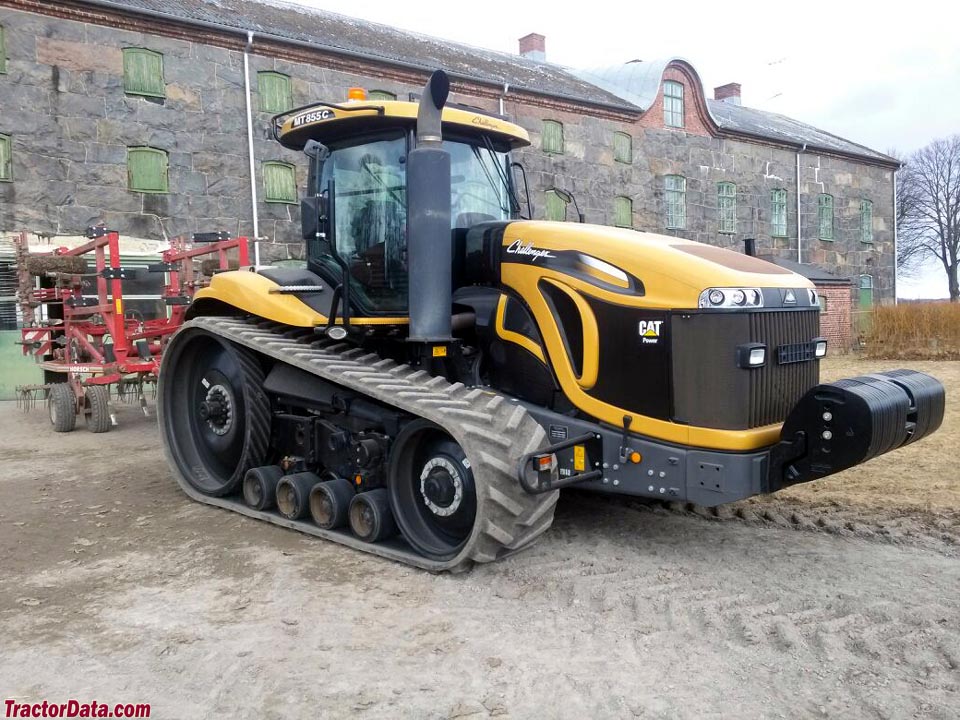

Challenger MT855C tractor photo
2009 - 2013   MT800C Series
Agricultural Crawler tractor
Previous model:Challenger MT855B
Next model:Challenger MT855E
Series next:Challenger MT865C
Series back:Challenger MT845C






Production:

Manufacturer:AGCO
Factory:Jackson, Minnesota, USA
Original price (USD)
   $416,245 ()


Challenger MT855C Engine:

   Caterpillar 15.1L 6-cyl diesel
full engine details ...


Capacity:

Fuel:305 gal [1154.4 L]


3-Point Hitch:

Rear Type:III/IVN
 IV
Rear lift:19,500 lbs [8845 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000 (1.75)


Dimensions & Tires:

Wheelbase:118 inches [299 cm]
Weight:41,000 lbs [18597 kg]
Front tire:tracks
Rear tire:tracks
full dimensions and tires ...


MT855C Serial Numbers:


- Serial numbers unknown -



Challenger MT855C Power:

Engine (gross):475 hp [354.2 kW]
PTO (claimed):385 hp [287.1 kW]
Drawbar (tested):358.14 hp [267.1 kW]
PTO (tested):465.26 hp [346.9 kW]
power test details ...


Mechanical:

Chassis:crawler
Steering:speed sensitive differential
Brakes:hydraulic wet discs
Cab:Cab standard


Hydraulics:

Type:closed center pressure-flow compensated
Pressure:2900 psi [200.0 bar]
Valves:4 to 6
SCV flow:36 gpm [136.3 lpm]
Total flow:43.5 gpm [164.6 lpm]
 59 gpm [223.3 lpm] (optional)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:185


Battery:

Number:4
Cold-cranking amps:1000
Volts:12
