Tractors > Iseki > TF23F

Iseki TF23F

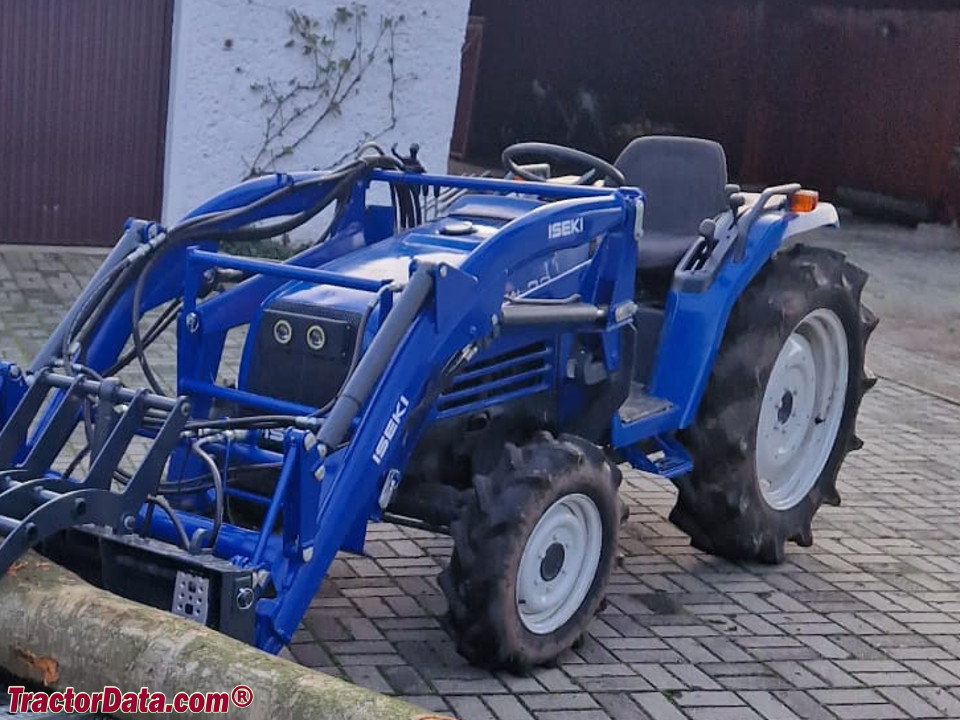

Iseki TF23F tractor photo
1995 - ????   Sial Series
Compact Utility tractor
Series next:Iseki TF26F
Series back:Iseki TF21F






Production:

Manufacturer:Iseki


Variants:

TF23F-U:utility
TF23HF:high-crop
TF23NF:narrow


Iseki TF23F Engine:

   Iseki 1.4L 3-cyl diesel
full engine details ...


Capacity:

Fuel:6.3 gal [23.8 L]


Power Take-off (PTO):

Rear RPM:540 (1.375)
Engine RPM:524@2500
730@2500
1269@2500


Dimensions & Tires:

Wheelbase:59.8 inches [151 cm]
Weight:1940 lbs [879 kg]
Front tire:7-14
Rear tire:9.5-24
full dimensions and tires ...


TF23F Serial Numbers:


how to read serial numbers...



Iseki TF23F Power:

Engine:22.7 hp [16.9 kW]
PTO (claimed):20.4 hp [15.2 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Cab:Two-post ROPS with canopy. Cab optional. Two-post folding ROPS on TF23NF.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
Amp-hours:55
